triple splice assembly for 4-conductor cable to (3) 1-ft coaxial cables each to a bnc jack

TRIPLE SPLICE, BNC JACK

Model JX

Add to Quote
  • IP

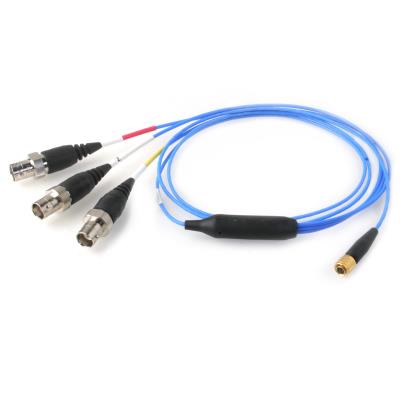

Triple splice assembly for 4-conductor cable to (3) 1-ft coaxial cables each to a BNC jack

Cannot be sold as a standalone item.


Protective Cap: 085A20


  • Connector Style: Triple Splice
  • Connector Style: BNC
  • Connection Type: Jack (female socket / recepticle)
  • Temperature Range: -67 to 230 °F (-55 to 110 °C)

Specification Notes

English: SI:
Performance
Connector Style Triple Splice Triple Splice
Connector Style BNC BNC
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method Bayonet Bayonet
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -67 to 230 °F -55 to 110 °C
Physical
Electrical Connections X axis X axis
Electrical Connections Y axis Y axis
Electrical Connections Z axis Z axis
ROHS Compliant No No
Size - Length 12 in 30.5 cm

* All specifications are at room temperature unless otherwise specified.
