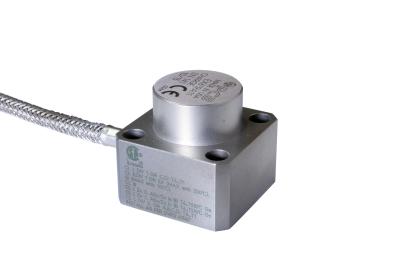

Model : EX619A11 | Charge Output Accelerometer

Call for lead time
$ 2,895.00 USD
(Pricing valid in US only!)

High temperature,intrinsically safe, charge mode accelerometer, 50 pC/g sensitivity, 900 degree F, integral hard-line cable terminating in MIL connector

Replaces Legacy Models Endevco 6240M46, Endevco 6240M49, Endevco 6240M51, Endevco 6240M52, Endevco 6240M56, Endevco 6420M57, Endevco 6240M58, Endevco 6240M60

  • Sensitivity: (±5%)50 pC/g (5.1 pC/(m/s²))
  • Measurement Range: ±500 g pk (±4905 m/s² pk)
  • Frequency Range: (±5%)3000 Hz
  • Weight: 19.4 oz (550 gm)

RELATED PRODUCTS



422M182

In-line differential charge converter, 4 mV/pC, 2-pin Mil input to BNC output, ICP® powered



Add to Cart for Quote
Add To Cart
EX682A40

Intrinsically-safe, DIN mount, differential charge amplifier, 10 mV/pC



Add to Cart for Quote
Add To Cart
English: SI:
Performance
Sensitivity (±5 %) 50 pC/g 5.1 pC/(m/s²)
Measurement Range ±500 g pk ±4905 m/s² pk
Frequency Range (±5 %) 3000 Hz 3000 Hz [4]
Frequency Range (+10 %) 5000 Hz 5000 Hz [4]
Resonant Frequency >18 kHz >18 kHz [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 % [3]
Environmental
Overload Limit (Shock) ±2000 g pk ±19620 m/s² pk
Temperature Range (Cable Termination) -65 to +500 °F -54 to +260 °C
Temperature Range (Operating) -65 to +900 °F -54 to +482 °C
Temperature Response See Graph See Graph [2]
Base Strain Sensitivity ≤0.033 g/µε ≤.32 (m/s²)/µε
Electrical
Capacitance (Pin to Pin) 1525 pF 1525 pF [2]
Capacitance (Pin to Case) 250 pF 250 pF [2]
Insulation Resistance (Pin to Case 70° F) >1000000000 Ohm >1000000000 Ohm
Insulation Resistance (Pin to Pin 70° F) >1000000000 Ohm >1000000000 Ohm
Insulation Resistance (Pin to Pin 900° F) >100 kohm >100 kohm
Output Polarity Differential Differential
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Compression Compression
Housing Material Inconel Inconel
Sealing Hermetic Hermetic
Size - Height 1.49 in 38 mm
Size - Length 1.63 in 41.4 mm
Size - Width 1.63 in 41.4 mm
Weight (with cable) 19.4 oz 550 gm [2]
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Electrical Connection Position Side Side
Cable Length 7 ft 2.1 m
Cable Type MI Hardline Cable MI Hardline Cable
Mounting Through Holes (4) Through Holes (4)
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically <= 3%.
[4] Low frequency response is determined by external signal conditioning electronics.
[2] Typical.
[5] See PCB Declaration of Conformance PS141 for details.


Accessories


Supplied
ICS-1 Calibration of industrial accel. with full frequency response plot and NIST-traceable certificate 1
62177-01 4
