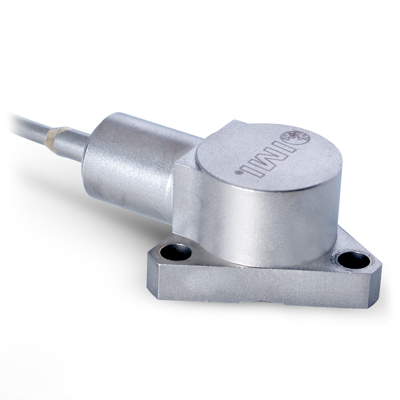

uht-12™, high temperature, charge mode accelerometer kit containing a side exit accelerometer with shear sensing crystal, 10 ft integral hard-line cable, and integral charge amplifier

VERY HIGH TEMPERATURE Industrial ICP® Accelerometer

Model EX600B14

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • EX
  • IP

UHT-12™, high temperature, charge mode accelerometer kit containing a side exit accelerometer with shear sensing crystal, 10 ft integral hard-line cable, and integral charge amplifier

  • Sensitivity: (±5%)10 mV/g (1.02 mV/(m/s²))
  • Sensing Element: UHT-12™
  • Measurement Range: ±500 g (±4900 m/s²)
  • Weight: 10.5 oz (300 gm)

Specification Notes


[1] Conversion Factor 1g = 9.81 m/s².
[2] 1Hz = 60 cpm (cycles per minute).
[3] Zero-based, least-squares, straight line method.
[4] The high frequency tolerance is accurate within ±10% of the specified frequency.
[5] Typical value.
[1] Conversion Factor 1g = 9.81 m/s².
[5] Typical value.
[1] Conversion Factor 1g = 9.81 m/s².
[5] Typical value.
[6] See PCB Declaration of Conformance PS116 for details.

English: SI:
Performance
Sensitivity (±5 %) 10 mV/g 1.02 mV/(m/s²) [1]
Measurement Range (Peak) ±500 g ±4900 m/s²
Frequency Range (±5 %) 282 to 210000 cpm 4.7 to 3500 Hz [2] [4]
Frequency Range (±10 %) 204 to 300000 cpm 3.4 to 5000 Hz
Resonant Frequency 1200 kcpm 20 kHz [5]
Broadband Resolution (1) 4 mg 39 mm/s² [1] [5]
Non-Linearity ±1 % ±1 % [3]
Transverse Sensitivity <5 % <5 %
Environmental
Overload Limit (Shock) 1000 g pk 9810 m/s² pk [1]
Temperature Range (Accelerometer) -65 to +900 °F -54 to +482 °C
Temperature Range (Charge Amplifier) -60 to +250 °F -51 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [5]
Base Strain Sensitivity ≤0.01 g/µε ≤0.1 (m/s²)/µε [1]
Electrical
Settling Time (at 70 °F within 1% of bias) ≤1.0 sec ≤1.0 sec
Discharge Time Constant ≥.10 sec ≥.10 sec
Excitation Voltage 22 to 28 VDC 22 to 28 VDC
Constant Current Excitation 2.2 to 20 mA 2.2 to 20 mA
Output Impedance 1000 Ohm 1000 Ohm [5]
Output Bias Voltage 12 to 16 VDC 12 to 16 VDC
Spectral Noise (10 Hz) 260 µg/√Hz 2550 (µm/sec2)/√Hz [1] [5]
Spectral Noise (100 Hz) 60 µg/√Hz 590 (µm/sec2)/√Hz [1] [5]
Spectral Noise (1 kHz) 30 µg/√Hz 295 (µm/sec2)/√Hz [1] [5]
Electrical Isolation 100000000 Ohm 100000000 Ohm
Physical
Size - Diameter 1.5 in 38.1 mm
Size - Height 0.75 in 19.1 mm
Weight (with cable) 10.5 oz 300 gm
Mounting Through Holes (3) Through Holes (3)
Sensing Element UHT-12™ UHT-12™
Sensing Geometry Shear Shear
Housing Material Inconel Inconel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Electrical Connection Position Side Side
Cable Length 10 ft 3 m
Cable Type Integral Hardline Cable Integral Hardline Cable

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories


Supplied
ICS-1 Calibration of industrial accel. with full frequency response plot and NIST-traceable certificate 1
081A99 Socket head cap screw, 8-32 x 0.5" long, 18-8 stainless steel 3
