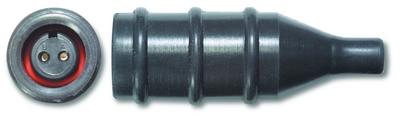

2-socket environmental boot connector (mil-c-5015 compatible)

Cable Connector

Model AE

  • IP

2-socket environmental boot connector (MIL-C-5015 compatible)

  • Connector Style: MIL-C-5015
  • Connector Style: Multi-conductor
  • Connection Type: 2-socket
  • Connection Type: Jack (female socket / recepticle)
  • Temperature Range: -67 to 325 °F (-55 to 163 °C)

Specification Notes

English: SI:
Performance
Connector Style MIL-C-5015 MIL-C-5015
Connector Style Multi-conductor Multi-conductor
Connection Type 2-socket 2-socket
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method (Keyed) Push On Push On
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -67 to 325 °F -55 to 163 °C
Ingress Protection Molded Environmental Boot Molded Environmental Boot
Enclosure Rating IP67 IP67
Physical
ROHS Compliant Yes Yes
Size - OD 0.88 in 22 mm
Size - Length 2.4 in 61 mm
Weight 0.88 oz 25 gm

* All specifications are at room temperature unless otherwise specified.
