Model : 047 | Cable

Call for lead time

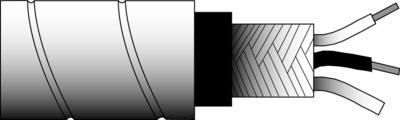

armor jacketed polyurethane cable, 2-conductor, twisted pair w/drain, shielded
$ 4.70 USD
(Pricing valid in US only!)

Armor jacketed polyurethane cable, 2-conductor, twisted pair w/drain, shielded

  • Cable Style: Multi Conductor - Shielded
  • Number of Conductors: 2
  • Cable Jacket Material: Polyurethane
  • Temperature Range: -58 to +250 °F ( -50 to +121 °C)
English: SI:
Performance
Number of Conductors 2 2
Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
Cable Configuration Twisted Pair Twisted Pair
Environmental
Temperature Range -58 to +250 °F -50 to +121 °C
Electrical
Capacitance (conductor to conductor @ 70 °F (21 °C)) 36 pF/ft 118 pF/m
Physical
Cable Jacket Diameter (±.010 in) 0.250 in 6.35 mm [ 1]
Cable Jacket Material Polyurethane Polyurethane
Cable Jacket Color Black Black
Protective Covering Diameter 0.41 in 10.41 mm [ 1]
Protective Covering Stainless Steel Armor Stainless Steel Armor
Conductor Style Stranded - 19 strands 32 AWG Stranded - 19 strands 32 AWG
Conductor Material Tin Plated Copper Tin Plated Copper
Conductor Diameter (20 AWG) 0.04 in 1.02 mm [ 1]
Shield Type Over Bundle Braid: 90% Minimum Coverage Braid: 90% Minimum Coverage
Shield Material Over Bundle Tin Plated Copper Tin Plated Copper
Drain Wire Material Tin Plated Copper Tin Plated Copper
Filler Material Aramid Tie Cord Aramid Tie Cord
Bend Radius (minimum) 4.10 in 104.14 mm
Weight 1.61 oz/ft 149.75 gm/m [ 1]
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Typical.
