sextuple splice assembly of (3) bnc plugs and (3) pigtails leads wired/labeled (power+, power-, sensor case ground) for 3713 series, maintaining case isolation

Cable Connector

Model SL

  • IP

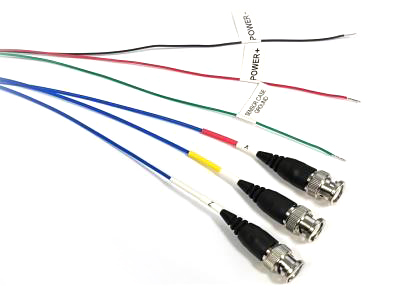

Sextuple splice assembly of (3) BNC plugs and (3) pigtails leads wired/labeled (Power+, Power-, Sensor Case Ground) for 3713 Series, maintaining case isolation

  • Connector Style: Pigtail
  • Connector Style: BNC
  • Connection Type: Plug (male pin)
  • Temperature Range: -67 to +230 °F (-55 to +110 °C)

Specification Notes


English: SI:
Performance
Connector Style Pigtail Pigtail
Connector Style BNC BNC
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Bayonet Bayonet
Strain Relief Heat Shrink Heat Shrink
Environmental
Temperature Range -67 to +230 °F -55 to +110 °C
Physical
Electrical Connections "See Outline Drawing" "See Outline Drawing"
ROHS Compliant Yes Yes

* All specifications are at room temperature unless otherwise specified.
