Model : 037 | 10 Conductor Shielded Cable

Call for lead time
Add to Cart for Quote

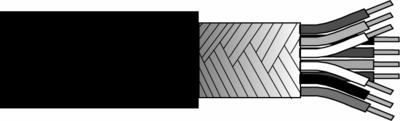

10-conductor shielded cable (price per foot)

  • Cable Style: Multi Conductor - Shielded
  • Number of Conductors: 10
  • Cable Jacket Material: Polyurethane
  • Temperature Range: -58 to +250 °F (-50 to +121 °C)
English: SI:
Performance
Number of Conductors 10 10
Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
Cable Configuration Not Twisted Not Twisted
Environmental
Temperature Range -58 to +250 °F -50 to +121 °C
Electrical
Capacitance (conductor to conductor @ 70 °F (21 °C)) 18 pF/ft 59.1 pF/m
Capacitance (conductor to shield / drain @ 70 °F (21 °C)) 32 pF/ft 105 pF/m
Physical
Cable Jacket Diameter 0.154 in 3.91 mm [1]
Cable Jacket Material Polyurethane Polyurethane
Cable Jacket Color Black Black
Conductor Style Stranded - 40 Strands 44 AWG Stranded - 40 Strands 44 AWG
Conductor Material Copper Copper
Conductor Diameter (28 AWG) 0.015 in 0.381 mm [1]
Insulation Material Over Conductor(s) FEP FEP
Shield Type Over Conductor(s) Braid: 90% Minimum Coverage Braid: 90% Minimum Coverage
Shield Material Over Conductor(s) Tinned Copper Tinned Copper
Bend Radius (minimum) 1.5 in 38.1 mm
Weight .32 oz/ft 29.65 gm/m [1]
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Typical.
