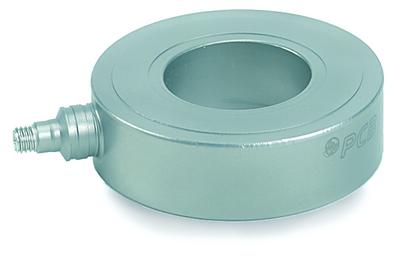

Model : M216B | Force Sensor, Charge Output

Click for lead times
Lead Time for 1-3 is 10 Wks
$ 1,390.00 USD
(Pricing valid in US only!)

Force ring, 80k lb comp., 18 pC/lb, charge output

  • Sensitivity: (±15%)18 pC/lb (4047 pC/kN)
  • Upper Frequency Limit: 40 kHz
  • Temperature Range: -100 to +400 °F (-73 to +204 °C)
  • Weight: 5.48 oz (155 gm)
English: SI:
Performance
Sensitivity (±15 %) 18 pC/lb 4047 pC/kN
Measurement Range (Compression) ≤80000 lb ≤355.86 kN
Maximum Static Force (Compression) 90000 lb 400.32 kN
Upper Frequency Limit 40 kHz 40 kHz [2] [3]
Non-Linearity ≤1.25 % FS ≤1.25 % FS [1]
Environmental
Temperature Range -100 to +400 °F -73 to +204 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Capacitance 80 pF 80 pF [4]
Insulation Resistance ≥1E12 ≥1E12
Output Polarity (Compression) Negative Negative
Physical
Preload 16000 lb 71.172 kN
Stiffness 74 lb/µin 13 kN/µm [4]
Size - Diameter 2.05 in 52.9 mm
Size - Height 0.590 in 15 mm
Size - Bolt Diameter 1 in 26 mm
Size - ID (Hole Diameter) 1.025 in 26.04 mm
Size - OD (Sensor) 2.05 in 52 mm
Size - Sensing Surface 1.750 in 44.5 mm
Weight 5.48 oz 155 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Estimated using rigid body dynamics calculations.
[3] Low frequency response and system noise dependent on choice of external signal conditioning electronics.
[4] Typical.


Accessories


Supplied
080A82 Assembly lubricant (for Series 201-207 force rings) 1
081A16 Mounting stud, 7/8-14 x 1.900", BeCu (for Models 206C & 216B) 1
082B06 Anti-friction washer (for Models 206C, 216B, 260A03, 260A13, & 260A33) 1
083B06 Pilot bushing (for Models 206C & 216B) 1


Optional Versions


( M ) Metric Mount
Accessories:
Supplied M083B06 Pilot Bushing 0
Supplied 080A82 Accessory for Force - Torque Division Product 0
Supplied 082B06 Anti-Friction Washer 0
Supplied M081A16 Mounting Stud, M22 x 2.00 x 1.900, BeCu 0


( P ) Positive Output Polarity


( W ) Water Resistant Cable
English SI
Electrical Connector Molded Integral Cable
Electrical Connection Position Side
