triple splice assembly for 4-conductor cable to (3) 1-ft coaxial cables each to a 10-32 plug (ej)

Cable Connector

Model LA

  • IP

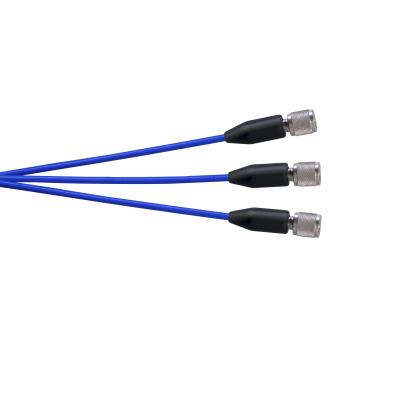

Triple splice assembly for 4-conductor cable to (3) 1-ft coaxial cables each to a 10-32 plug (EJ)

Protective Cap: 085A18


  • Connector Style: Triple Splice
  • Connector Style: Coaxial
  • Connection Type: Plug (male pin)
  • Coupling Thread: 10-32 female
  • Temperature Range: -67 to 230 °F (-55 to 110 °C)

Specification Notes


English: SI:
Performance
Connector Style Triple Splice Triple Splice
Connector Style Coaxial Coaxial
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Threaded Threaded
Coupling Thread 10-32 female 10-32 female
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -67 to 230 °F -55 to 110 °C
Physical
Electrical Connections X axis X axis
Electrical Connections Y axis Y axis
Electrical Connections Z axis Z axis
ROHS Compliant No No
Size - Length 12 in 30.5 cm

* All specifications are at room temperature unless otherwise specified.
