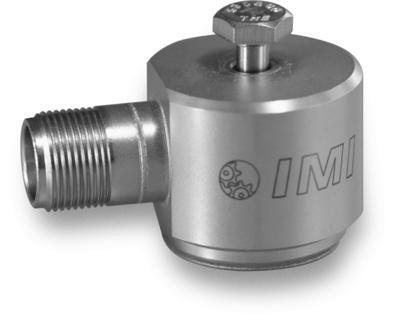

high temperature, ring-style, industrial, ceramic shear icp® accel, 100 mv/g, 0.2 to 10.5k hz, side exit, 2-pin conn., frequency sweep iso 17025 accredited calibration

ACCELEROMETER

Model HT625B01

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

High temperature, ring-style, industrial, ceramic shear ICP® accel, 100 mV/g, 0.2 to 10.5k Hz, side exit, 2-pin conn., frequency sweep ISO 17025 accredited calibration

  • Sensitivity: (±5%)100 mV/g (10.2 mV/(m/s²))
  • Frequency Range: (±3dB)12 to 600000 cpm (0.2 to 10000 Hz)
  • Sensing Element: Ceramic
  • Measurement Range: ±50 g (±490 m/s²)
  • Weight: 5.1 oz (145 gm)

Specification Notes

[1] Conversion Factor 1g = 9.81 m/s².
[2] 1Hz = 60 cpm (cycles per minute).
[3] Zero-based, least-squares, straight line method.
[4] The high frequency tolerance is accurate within ±10% of the specified frequency.
[5] Typical.
[6] Bias voltage increases with higher constant current.
[7] Maximum of 4 mA is recommended at temperatures above 250 °F (121 °C).
[8] 1/4-28 has no equivalent in S.I. units.

English: SI:
Performance
Sensitivity (±5 %) 100 mV/g 10.2 mV/(m/s²) [1]
Measurement Range ±50 g ±490 m/s²
Frequency Range (±5 %) 30 to 240000 cpm 0.5 to 4000 Hz [2] [4]
Frequency Range (±10 %) 22 to 360000 cpm 0.37 to 6000 Hz
Frequency Range (±3 dB) 12 to 600000 cpm 0.2 to 10000 Hz
Resonant Frequency 1380 kcpm 23 kHz [5]
Broadband Resolution (1) 200 µg 1962 µm/sec2 [5]
Non-Linearity ±1 % ±1 % [3]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) 2000 g pk 19620 m/s² pk
Temperature Range -65 to +325 °F -54 to +163 °C
Temperature Response See Graph %/°F See Graph %/°F [5]
Electrical
Settling Time (within 1% of bias) ≤8 sec ≤8 sec
Discharge Time Constant ≥1.0 sec ≥1.0 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 10 mA 2 to 10 mA [7]
Output Impedance <250 Ohm <250 Ohm
Output Bias Voltage (at 4 mA) 8 to 15 VDC 8 to 15 VDC [6]
Spectral Noise (10 Hz) 10 µg/√Hz 98.1 (µm/sec2)/√Hz [5]
Spectral Noise (100 Hz) 6.0 µg/√Hz 58.9 (µm/sec2)/√Hz [5]
Spectral Noise (1 kHz) 1.5 µg/√Hz 14.7 (µm/sec2)/√Hz [5]
Electrical Isolation >100000000 Ohm >100000000 Ohm
Physical
Size - Diameter 1.36 in 35 mm
Size - Height 1.13 in 29 mm
Weight 5.1 oz 145 gm
Mounting Thread 1/4-28 UNF No Metric Equivalent [8]
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Electrical Connection Position Side Side

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
081A73 1/4-28 x 1.34" hex head captive thru bolt 1
ICS-1 Calibration of industrial accel. with full frequency response plot and NIST-traceable certificate 1

Optional Versions

(M) Metric Mount
Accessories:
Supplied M081A73 Captive Mounting Bolt 1
