high temperature, high frequency, industrial, ceramic shear icp® accel, 100 mv/g, 0.8 to 15k hz, top exit, 2-pin conn., frequency sweep iso 17025 accredited calibration

ACCELEROMETER

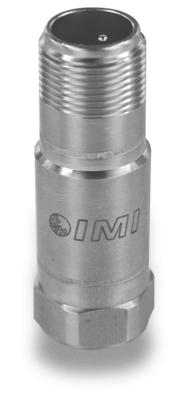

Model HT623C01

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

High temperature, high frequency, industrial, ceramic shear ICP® accel, 100 mV/g, 0.8 to 15k Hz, top exit, 2-pin conn., frequency sweep ISO 17025 accredited calibration

  • Sensitivity: (±5%)100 mV/g (10.2 mV/(m/s²))
  • Frequency Range: (±3dB)48 to 720000 cpm (0.8 to 12 kHz)
  • Sensing Element: Ceramic
  • Measurement Range: ±50 g (±490 m/s²)
  • Weight: 1.80 oz (51 gm)

Specification Notes

[1] Conversion Factor 1g = 9.81 m/s².
[2] 1Hz = 60 cpm (cycles per minute).
[3] Zero-based, least-squares, straight line method.
[4] The high frequency tolerance is accurate within ±10% of the specified frequency.
[5] Typical.
[6] Bias voltage increases with higher constant current.
[7] Maximum of 4 mA is recommended at temperatures above 250 °F (121 °C).
[8] 1/4-28 has no equivalent in S.I. units.
[9] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±5 %) 100 mV/g 10.2 mV/(m/s²) [1]
Measurement Range ±50 g ±490 m/s²
Frequency Range (±5 %) 144 to 420000 cpm 2.4 to 7 kHz [2] [4]
Frequency Range (±10 %) 102 to 480000 cpm 1.7 to 8 kHz
Frequency Range (±3 dB) 48 to 720000 cpm 0.8 to 12 kHz
Resonant Frequency 2100 kcpm 35 kHz [5]
Broadband Resolution (1) 300 µg 2943 µm/sec2 [5]
Non-Linearity ±1 % ±1 % [3]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) 5000 g pk 49050 m/s² pk
Temperature Range -65 to +325 °F -54 to +163 °C
Temperature Response See Graph %/°F See Graph %/°F [5]
Electrical
Settling Time (within 1% of bias) ≤2 sec ≤2 sec
Discharge Time Constant ≥0.2 sec ≥0.2 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 10 mA 2 to 10 mA [7]
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage (at 4 mA) 8 to 15 VDC 8 to 15 VDC [6]
Spectral Noise (10 Hz) 20 µg/√Hz 196 (µm/sec2)/√Hz [5]
Spectral Noise (100 Hz) 7 µg/√Hz 69 (µm/sec2)/√Hz [5]
Spectral Noise (1 kHz) 3 µg/√Hz 29 (µm/sec2)/√Hz [5]
Electrical Protection RFI/ESD RFI/ESD
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Size - Hex 11/16 in 17.5 mm
Size - Height 1.97 in 50 mm
Weight 1.80 oz 51 gm
Mounting Thread 1/4-28 UNF No Metric Equivalent [8]
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Electrical Connection Position Top Top
