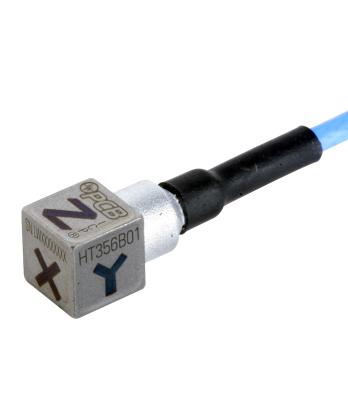

Triaxial ICP® Accelerometer

Model HT356B01

$1,707.00 USD

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
4 Lead Time for 1-10 is 12 Wks
Lead Time for 11-20 is 14 Wks

Platinum Stock Product Triaxial, lightweight miniature, ceramic shear ICP® accel., 5 mV/g, to +356 F (+180 C)

  • Sensitivity: (±20%)5 mV/g (0.51 mV/(m/s²))
  • Measurement Range: ±1000 g pk (±9810 m/s² pk)
  • Electrical Connector: Integral Cable

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Terminating connector limited to 325F (163C).
[2] Typical.
[4] Increased current up to 20mA acceptable to 250F (121C)
[2] Typical.
[3] Terminating connector limited to 325F (163C).
[5] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±20 %) 5 mV/g 0.51 mV/(m/s²)
Measurement Range ±1000 g pk ±9810 m/s² pk
Frequency Range (±5 %) (y or z axis) 2 to 8000 Hz 2 to 8000 Hz
Frequency Range (±5 %) (x axis) 2 to 5000 Hz 2 to 5000 Hz
Frequency Range (+1 dB) (x axis) ≥8 kHz ≥8 kHz
Resonant Frequency ≥50 kHz ≥50 kHz
Broadband Resolution (1) 0.003 g rms 0.03 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98100 m/s² pk
Temperature Range (Operating) -65 to +356 °F -54 to +180 °C [3]
Temperature Response See Graph %/°F See Graph %/°F [2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 4 mA 2 to 4 mA [4]
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 0.24 to 1.0 sec 0.24 to 1.0 sec
Settling Time (within 10% of bias) <3 sec <3 sec
Spectral Noise (1 Hz) 1200 µg/√Hz 11772 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 300 µg/√Hz 2943 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 100 µg/√Hz 981 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 30 µg/√Hz 294 (µm/sec2)/√Hz [2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.25 in 6.35 mm
Size - Length 0.25 in 6.35 mm
Size - Width 0.25 in 6.35 mm
Weight (without cable) 0.04 oz 1.0 gm [2]
Electrical Connector Integral Cable Integral Cable
Electrical Connection Position Side Side
Cable Termination 1/4-28 4-Pin Jack 1/4-28 4-Pin Jack [3]
Cable Length 5 ft 1.5 m
Cable Type 034 4-cond Shielded 034 4-cond Shielded
Mounting Adhesive Adhesive

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
034G05 4-conductor, low noise, shielded FEP cable, 5-ft, 4-socket plug to (3) BNC plugs (labeled X Y Z) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1

Optional Versions

(J) Ground Isolated

English SI
Size - Width .28 in 7.10 mm
Size - Length .28 in 7.10 mm
Size - Height .28 in 7.10 mm
Weight .04 oz 1.2 gm
Electrical Isolation >100000000 Ohm

(W) Water Resistant Cable

English SI
Electrical Connector Sealed Integral Cable
