Model : 356A06 | Triaxial ICP® Accelerometer

Call for lead time
$ 1,430.00 USD
(Pricing valid in US only!)

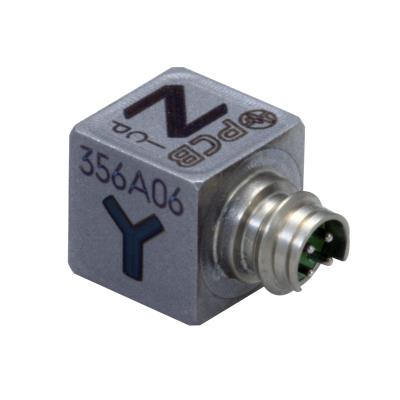

Triaxial, lightweight (1.0 gm) miniature, adhesive mount, ceramic shear ICP® accel., 5 mV/g, 0.25" cube, mini 8-36 4-pin connector (incl. 034K10)

  • Sensitivity: (±20%)5 mV/g (0.51 mV/(m/s²))
  • Measurement Range: ±1000 g pk (±9810 m/s² pk)
  • Electrical Connector: 8-36 4-Pin

RELATED PRODUCTS



034K10

4-conductor, low noise, shielded FEP cable, 10-ft, mini 4-socket plug to (3) BNC plugs (labeled X, Y, Z)



Add to Cart for Quote
Add To Cart
034H10

4-conductor, low noise, shielded FEP cable, 10-ft, mini 4-socket plug to (3) 10-32 plugs (labeled X, Y, Z)



Add to Cart for Quote
Add To Cart
019B20

4-conductor, shielded cable, silicone jacket, 20-ft, mini 4-pin to (3) BNC plugs



Add to Cart for Quote
Add To Quote
039A33

Removal tool for 0.25-inch (6.3mm) cube accelerometers



Add to Cart for Quote
Add To Cart
356A06/NC

Low Outgassing, Triaxial, lightweight (1.0 gm) miniature, adhesive mount, ceramic shear ICP® accel., 5 mV/g, 0.25" cube, mini 8-36 4-pin connector, no mating cable supplied



Add to Cart for Quote
Add To Cart
356A01

Platinum Stock Products;Triaxial, lightweight (1.0 gm) miniature, ceramic shear ICP® accel., 5 mV/g, 0.25" cube



Add to Cart for Quote
Add To Cart
356a03

Platinum Stock Products; Triaxial, lightweight miniature, ceramic shear ICP® accel., 10 mV/g, 0.25" cube



Add to Cart for Quote
Add To Cart
356a04

Triaxial, lightweight miniature, ceramic shear ICP® accel., 1.0 mV/g, 0.25" cube, 5 ft. integral cable to 4-pin jack +325F (163C) operating temp



Add to Cart for Quote
Add To Cart
356a05

Triaxial, lightweight miniature, ceramic shear ICP® accel., 0.25 mV/g, 0.25" cube, 5 ft. integral cable to 4-pin jack +325F (163C) operating temp



Add to Cart for Quote
Add To Cart
HT356B01

Platinum Stock Product Triaxial, lightweight miniature, ceramic shear ICP® accel., 5 mV/g, to +356 F (+180 C)



Add to Cart for Quote
Add To Cart
HTJ356B01

Triaxial, lightweight miniature, ceramic shear ICP® accel., 5 mV/g, to +356 F (+180 C), ground isolated (incl. 034G05)



Add to Cart for Quote
Add To Cart
J356A03

Triaxial, lightweight miniature, ceramic shear ICP® accel., 10 mV/g, 0.25" cube, ground isolated



Add to Cart for Quote
Add To Quote
356A13

Triaxial, lightweight (1.0 gm) miniature, ceramic shear ICP® accel., 5mV/g, 0.25" cube with flexible integral cable



Add to Cart for Quote
Add To Cart
019B10

4-conductor, shielded cable, silicone jacket, 10-ft, mini 4-pin to (3) BNC plugs



Add to Cart for Quote
Add To Quote
034M21

4-conductor lightweight cable, blue FEP jacket, shielded, 10-ft, mini 4 socket plug to (3) BNC plugs, low outgassing



Add to Cart for Quote
Add To Quote
English: SI:
Performance
Sensitivity (±20 %) 5 mV/g 0.51 mV/(m/s²)
Measurement Range ±1000 g pk ±9810 m/s² pk
Frequency Range (±5 %) (y or z axis) 2 to 8000 Hz 2 to 8000 Hz
Frequency Range (±5 %) (x axis) 2 to 5000 Hz 2 to 5000 Hz
Frequency Range (+1 dB) (x axis) ≥8 kHz ≥8 kHz
Resonant Frequency ≥50 kHz ≥50 kHz
Broadband Resolution (1) 0.003 g rms 0.03 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98100 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C [3]
Temperature Response See Graph %/°F See Graph %/°F [2] [3]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 0.24 to 1.0 sec 0.24 to 1.0 sec
Settling Time (within 10% of bias) <3 sec <3 sec
Spectral Noise (1 Hz) 1200 µg/√Hz 11772 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 300 µg/√Hz 2943 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 100 µg/√Hz 981 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 30 µg/√Hz 294 (µm/sec2)/√Hz [2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.25 in 6.35 mm
Size - Length 0.25 in 6.35 mm
Size - Width 0.25 in 6.35 mm
Weight 0.04 oz 1.0 gm [2]
Electrical Connector 8-36 4-Pin 8-36 4-Pin
Electrical Connection Position Side Side
Mounting Adhesive Adhesive
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] 250° F to 356° F data valid with HT option only.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
034K10 4-conductor, low noise, shielded FEP cable, 10-ft, mini 4-socket plug to (3) BNC plugs (labeled X, Y, Z) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1
