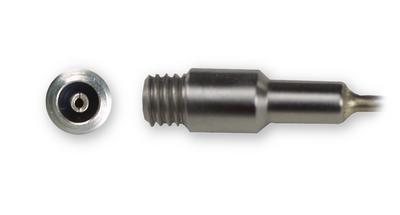

10-32 coaxial jack (for 023 hardline cable) **not field installable**

Cables

Model GA

  • IP

10-32 coaxial jack (for 023 hardline cable) **Not field installable**

***Maximum cable length is 50ft (15m)***
  • Connector Style: Coaxial
  • Connection Type: Jack (female socket / recepticle)
  • Coupling Thread: 10-32 male
  • Temperature Range: -65 to 550 °F (-54 to 288 °C)

Specification Notes


[1] When used with 023 cable

English: SI:
Performance
Connector Style Coaxial Coaxial
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method Threaded Threaded
Coupling Thread 10-32 male 10-32 male
Environmental
Temperature Range -65 to 550 °F -54 to 288 °C
Radiation Exposure Limit (Integrated Neutron Flux) 1 E10 N/cm² 1 E10 N/cm²
Radiation Exposure Limit (Integrated Gamma Flux) 1 E8 rad 1 E8 rad
Physical
Size - OD 0.22 in 5.6 mm
Size - Length 0.66 in 17 mm
Weight .063 oz 1.8 gm
Sealing Hermetic Hermetic [1]

* All specifications are at room temperature unless otherwise specified.
