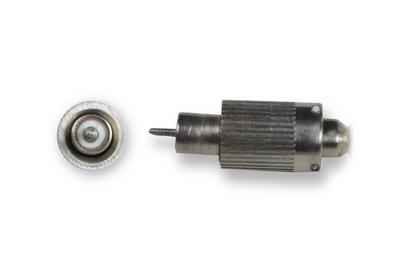

10-32 coaxial hardline plug (for 023 hardline cable) **not field installable**

CABLE CONNECTOR

Model FZ

  • IP

10-32 coaxial hardline plug (for 023 hardline cable) **Not field installable**

***Maximum cable length is 50ft (15m)***
  • Connector Style: Coaxial
  • Connection Type: Plug (male pin)
  • Coupling Thread: 10-32 female
  • Temperature Range: -112 to 900 °F (-80 to 482 °C)

Specification Notes


[1] When used with 023 cable

English: SI:
Performance
Connector Style Coaxial Coaxial
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Threaded Threaded
Coupling Thread 10-32 female 10-32 female
Environmental
Temperature Range -112 to 900 °F -80 to 482 °C
Radiation Exposure Limit (Integrated Neutron Flux) 1 E10 N/cm² 1 E10 N/cm²
Radiation Exposure Limit (Integrated Gamma Flux) 1 E8 rad 1 E8 rad
Physical
Size - OD 0.25 in 6.4 mm
Size - Length 0.69 in 18 mm
Weight 0.07 oz 2 gm
Sealing Hermetic Hermetic [1]

* All specifications are at room temperature unless otherwise specified.
