Model : DS

Call for lead time

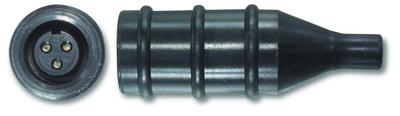

3-socket environmental boot connector (MIL-C-5015 compatible)

  • Connector Style: MIL-C-5015
  • Connector Style: Multi-conductor
  • Connection Type: 3-socket
  • Connection Type: Jack (female socket / recepticle)
  • Temperature Range: -67 to +250 °F (-55 to +121 °C)
English: SI:
Performance
Connector Style MIL-C-5015 MIL-C-5015
Connector Style Multi-conductor Multi-conductor
Connection Type 3-socket 3-socket
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method (Keyed) Push On Push On
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -67 to +250 °F -55 to +121 °C
Physical
ROHS Compliant No No
Housing Material Silicone Silicone
Size - OD 0.88 in 22 mm
Size - Length 2.4 in 61 mm
Weight 0.88 oz 25 gm
* All specifications are at room temperature unless otherwise specified
.


Specification Notes




Product Documents
