Model: CJ

Add to Cart for Quote

Call for lead time

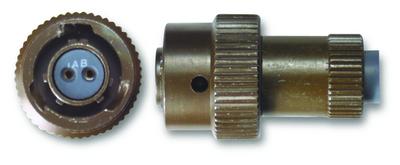

2-socket MS3116 bayonet connector (meets MIL-C-26482)

  • Connector Style: MS3116
  • Connector Style: Multi-conductor
  • Connection Type: 2-socket
  • Connection Type: Plug with Female Contact
  • Temperature Range: -67 to +257 °F (-55 to +125 °C)

Add this product to my product comparison
Compare selected models ()

Connector StyleMS3116MS3116
Connector StyleMulti-conductorMulti-conductor
Connection Type2-socket2-socket
Connection TypePlug with Female ContactPlug with Female Contact
Coupling MethodBayonetBayonet
Strain ReliefClampClamp
Temperature Range-67 to +257 °F-55 to +125 °C
Insulation Resistance≥5 GOhm≥5 GOhm
ROHS CompliantNoNo
Housing MaterialAluminum AlloyAluminum Alloy
FinishOlive Drab Chromate Over CadmiumOlive Drab Chromate Over Cadmium
Size - OD0.75 in19.1 mm
Size - Length1.76 in44.7 mm
Weight0.62 oz17.6 gm[1]

All specifications are at room temperature unless otherwise specified.

Product Notes
[1] Typical.
