accelerometer, iepe, 10 mv/g, ±500 g, 2 khz corner freq, -67°f to +212°f, isolated, thru-hole mount, side connector, 28 grams

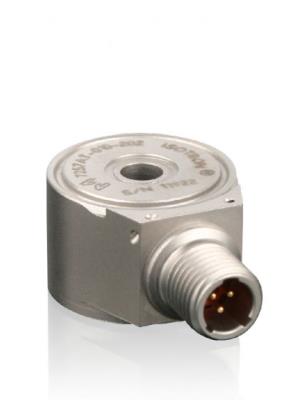

ISOTRON ACCELEROMETER

Model 7257AT-010-202

Add to Quote
  • IP

Accelerometer, IEPE, 10 mV/g, ±500 g, 2 kHz corner freq, -67°F to +212°F, isolated, thru-hole mount, side connector, 28 grams

    Specification Notes

    English: SI:
    General
    Output type Voltage (IEPE) Voltage (IEPE)
    Sensitivity 10 mV/g 1.02 mV/(m/sec2)
    Max Measurement Range 250 g pk 2453 m/sec2 pk
    Max Frequency (±5%) 2000 Hz 2000 Hz
    Weight 0.988 oz 28 gm
    Number of Axis 1 1
    Replacement (-R) No No

    * All specifications are at room temperature unless otherwise specified.
