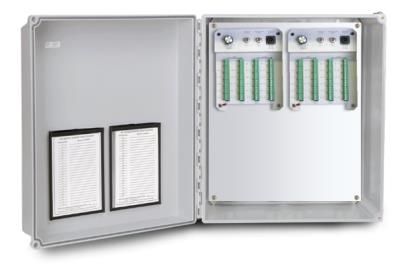

Switch box with switched & continuous outputs, 20" x 16" x 10" NEMA 4X (IP66) fiberglass enclosure, 24 channels, terminal strip input, vib & temp jack and two-pin MIL connector outputs, no connection ports
- Channels: 24
- Housing Material: Fiberglass
- Enclosure Rating: Nema 4X
(IP66)
|
English: |
SI: |
|
| Performance |
| Channels |
24 |
24 |
|
| Environmental |
| Enclosure Rating |
Nema 4X |
IP66 |
|
| Physical |
| Electrical Connector (Output, Vibration) |
BNC Jack |
BNC Jack |
|
| Electrical Connector (Output, Temperature) |
BNC Jack |
BNC Jack |
|
| Electrical Connector (Output, Vibration) |
2-Pin Mil |
2-Pin Mil |
|
| Electrical Connector (Input) |
Terminal Block |
Terminal Block |
|
| Electrical Connector (Output, Vibration) |
Terminal Block |
Terminal Block |
|
| Housing Material |
Fiberglass |
Fiberglass |
|
| Size - Height |
20.6 in |
523.2 mm |
|
| Size - Width |
16.6 in |
421.6 mm |
|
| Size - Depth |
7.9 in |
200.6 mm |
|
| Weight |
24.1 lb |
10.9 kg |
|
* All specifications are at room temperature unless otherwise specified
.
Specification Notes
[1] See PCB Declaration of Conformance PS174 for details.
Accessories
|
|
|
| Supplied |
| 080A192 |
4-position terminal block for use with model 691B40 |
2 |
