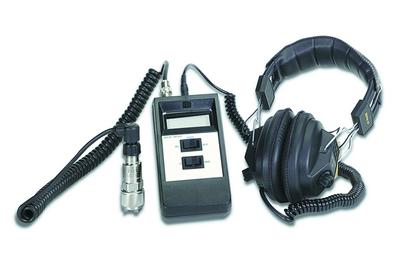

Model : 687A01 | Handheld Vibration Meter Kit

Click for lead times
handheld vibration meter kit includes: 687a02 meter, 603c01 sensor, 050bq006ac cable, 070a47 headphones, 080a131 magnet
$ 2,350.00 USD
(Pricing valid in US only!)

Handheld vibration meter kit includes: 687A02 meter, 603C01 sensor, 050BQ006AC cable, 070A47 headphones, 080A131 magnet

  • Acceleration Range: 0.01 - 19.99 g rms ( 0.01 - 19.99 g rms)
  • Velocity Range: 0.001 - 1.999 in/sec rms ( NA)
  • Frequency Response: (±3dB)3000 to 3000000 cpm ( 3000 to 3000000 cpm)

RELATED PRODUCTS



633A01
633A01

Digital, industrial, ceramic accelerometer, 0.9 to 15k Hz, top exit, integral cable terminating in USB connector



Add to Cart for Quote
Add to Cart
485B39
485B39

2-channel, USB-powered, ICP® sensor signal conditioner with USB digital output (24-bit A/D)



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Frequency Response (+10 to -20 %) 600 to 60000 cpm 600 to 60000 cpm [ 1] [ 1]
Frequency Response (±3 dB) 3000 to 3000000 cpm 3000 to 3000000 cpm [ 1] [ 1]
Acceleration Range 0.01 - 19.99 g rms 0.01 - 19.99 g rms
Resolution ±2 counts ±2 counts [ 2] [ 2]
Velocity Range 0.001 - 1.999 in/sec rms NA
Accuracy ±3 % ±3 % [ 2] [ 2]
Frequency Response (+10 to -20 %) 600 to 60000 cpm 600 to 60000 cpm [ 1] [ 1]
Frequency Response (±3 dB) 3000 to 3000000 cpm 3000 to 3000000 cpm [ 1] [ 1]
Acceleration Range 0.01 - 19.99 g rms 0.01 - 19.99 g rms
Resolution ±2 counts ±2 counts [ 2] [ 2]
Velocity Range 0.001 - 1.999 in/sec rms NA
Accuracy ±3 % ±3 % [ 2] [ 2]
Environmental
Temperature Range (Accelerometer ) -65 to +250 °F -54 to +121 °C
Temperature Range (Meter ) +32 to +122 °F 0 to +50 °C [ 3] [ 3]
Temperature Range (Accelerometer ) -65 to +250 °F -54 to +121 °C
Temperature Range (Meter ) +32 to +122 °F 0 to +50 °C [ 3] [ 3]
Electrical
Excitation Voltage (±1 VDC) 24 VDC 24 VDC
Constant Current Excitation (±0.6 mA) 2 mA 2 mA
Bias Voltage 0.00 to 19.99 VDC 0.00 to 19.99 VDC
Battery Life(Alkaline) 10 hours 10 hours [ 2] [ 2]
Battery Life(Rechargeable Ni Cad) 3 hours 3 hours [ 2] [ 4] [ 2] [ 4]
Excitation Voltage (±1 VDC) 24 VDC 24 VDC
Constant Current Excitation (±0.6 mA) 2 mA 2 mA
Bias Voltage 0.00 to 19.99 VDC 0.00 to 19.99 VDC
Battery Life(Alkaline) 10 hours 10 hours [ 2] [ 2]
Battery Life(Rechargeable Ni Cad) 3 hours 3 hours [ 2] [ 4] [ 2] [ 4]
Physical
Size - Length 15 in 381 mm
Size - Width 11 in 279.4 mm
Size - Height 4.375 in 111.1 mm
Weight 3.90 lb 1.77 kg
Connector(Input) BNC Jack BNC Jack
Connector(Headphones) 1/8" Stereo Jack 1/8" Stereo Jack
ROHS Compliant No No
Size - Length 15 in 381 mm
Size - Width 11 in 279.4 mm
Size - Height 4.375 in 111.1 mm
Weight 3.90 lb 1.77 kg
Connector(Input) BNC Jack BNC Jack
Connector(Headphones) 1/8" Stereo Jack 1/8" Stereo Jack
ROHS Compliant No No
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] 1Hz = 60 cpm (cycles per minute).
[ 2] Typical value.
[ 3] Non-condensing.
[ 2] Typical value.
[ 4] Varta TR7/8 or Eveready N88 for rechargeable version.
[ 1] 1Hz = 60 cpm (cycles per minute).
[ 2] Typical value.
[ 3] Non-condensing.
[ 2] Typical value.
[ 4] Varta TR7/8 or Eveready N88 for rechargeable version.


Accessories


Supplied
050BQ006AC Coiled ployurethane cable, right angle composite 2-socket MIL to BNC plug, 6' extended length 1
070A47 Stereo headphones w/individual volume controls (for use with Model 687A02 Handheld Vibration Meter 1
080A131 Curved surface magnet, 1.0" diameter, 35 lbf, 1/4-28 threaded hole w/mounting stud 1
603C01 Platinum Stock Products; General purpose, industrial, ceramic shear ICP® accel, 100 mV/g, 0.5 to 10k Hz, top exit, 2-pin conn., single point ISO 17025 accredited calibration 1
687A02 Handheld vibration meter measures acceleration, velocity, and complies with ISO 2954 & ISO 10816 1
Supplied
050BQ006AC Coiled ployurethane cable, right angle composite 2-socket MIL to BNC plug, 6' extended length 1
070A47 Stereo headphones w/individual volume controls (for use with Model 687A02 Handheld Vibration Meter 1
080A131 Curved surface magnet, 1.0" diameter, 35 lbf, 1/4-28 threaded hole w/mounting stud 1
603C01 Platinum Stock Products; General purpose, industrial, ceramic shear ICP® accel, 100 mV/g, 0.5 to 10k Hz, top exit, 2-pin conn., single point ISO 17025 accredited calibration 1
687A02 Handheld vibration meter measures acceleration, velocity, and complies with ISO 2954 & ISO 10816 1


Optional Versions


( R ) Rechargeable option, includes rechargable batteries and charger.
Accessories:
Supplied 073A09 Rechargeable NiCad battery (9V) 1
Supplied 073M12 Cables 1
Supplied 017A01 Power Cord 1
