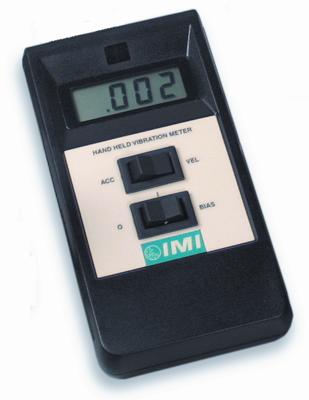

Model : 687A02 | Handheld Vibration Meter

Call for lead time
$ 1,895.00 USD
(Pricing valid in US only!)

Handheld vibration meter measures acceleration, velocity, and complies with ISO 2954 & ISO 10816

Handheld vibration meter with BNC jack input and 1/8" stereo jack headphone connection. Available with 10 hour alkaline battery or 3 hour NiCd rechargable option.

  • Acceleration Range: 0.01-199.99 g rms (0.01-19.99 g rms)
  • Velocity Range: 0.001-1.999 in/sec rms (NA)
  • Frequency Response: (+/-3dB)3000 to 3000000 cpm (99 to 3000000 cpm)
English: SI:
Performance
Frequency Response (+10 to -20 %) 600 to 60000 cpm 600 to 60000 cpm [1] [1]
Frequency Response (+/-3 dB) 3000 to 3000000 cpm 99 to 3000000 cpm [1] [1]
Acceleration Range 0.01-199.99 g rms 0.01-19.99 g rms
Resolution ±2 counts ±2 counts [2] [2]
Velocity Range 0.001-1.999 in/sec rms NA
Accuracy ±3 % ±3 % [2] [2]
Frequency Response (+10 to -20 %) 600 to 60000 cpm 600 to 60000 cpm [1] [1]
Frequency Response (+/-3 dB) 3000 to 3000000 cpm 99 to 3000000 cpm [1] [1]
Acceleration Range 0.01-199.99 g rms 0.01-19.99 g rms
Resolution ±2 counts ±2 counts [2] [2]
Velocity Range 0.001-1.999 in/sec rms NA
Accuracy ±3 % ±3 % [2] [2]
Environmental
Temperature Range +32 to +122 °F 0 to +50 °C [3] [3]
Temperature Range +32 to +122 °F 0 to +50 °C [3] [3]
Electrical
Excitation Voltage (+/-1 VDC) 24 VDC 24 VDC
Constant Current Excitation (+/-0.6 mA) 2 mA 2 mA
Bias Voltage 0.00 to 19.99 VDC 0.00 to 19.99 VDC
Battery Life(Alkaline) 10 hours 10 hours [2] [2]
Battery Life(Rechargeable Ni Cad) 3 hours 3 hours [4] [5] [4] [5]
Excitation Voltage (+/-1 VDC) 24 VDC 24 VDC
Constant Current Excitation (+/-0.6 mA) 2 mA 2 mA
Bias Voltage 0.00 to 19.99 VDC 0.00 to 19.99 VDC
Battery Life(Alkaline) 10 hours 10 hours [2] [2]
Battery Life(Rechargeable Ni Cad) 3 hours 3 hours [4] [5] [4] [5]
Physical
Size - Length 5.9 in 150 mm
Size - Width 3.15 in 80 mm
Size - Height 1.2 in 30 mm
Weight (with battery ) 0569 lb 0569 lb
Connector(Input) BNC Jack BNC Jack
Connector(Headphones) 1/8" Stereo Jack 1/8" Stereo Jack
ROHS Compliant No No
Size - Length 5.9 in 150 mm
Size - Width 3.15 in 80 mm
Size - Height 1.2 in 30 mm
Weight (with battery ) 0569 lb 0569 lb
Connector(Input) BNC Jack BNC Jack
Connector(Headphones) 1/8" Stereo Jack 1/8" Stereo Jack
ROHS Compliant No No
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] 1Hz = 60 cpm (cycles per minute).
[2] Typical value.
[3] Non-condensing.
[2] Typical value.
[4] Typical.
[5] Varta TR7/8 or Eveready N88 for rechargeable version.
[1] 1Hz = 60 cpm (cycles per minute).
[2] Typical value.
[3] Non-condensing.
[2] Typical value.
[4] Typical.
[5] Varta TR7/8 or Eveready N88 for rechargeable version.


Optional Versions


( R ) Rechargeable option, includes rechargable batteries and charger.
Accessories:
Supplied 017A01 Power Cord 1
Supplied 073A09 Rechargeable NiCad battery (9V) 1
Supplied 073M12 Cables 1
