Model : 672A02 | ECHOPLUS®

Call for lead time

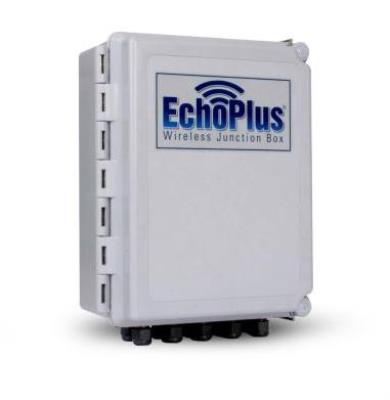

echoplus® wireless junction box (8-channels), 868 mhz
$ 2,495.00 USD
(Pricing valid in US only!)

EchoPlus® Wireless Junction Box (8-channels), 868 MHz

  • Frequency Band: 868 MHz ISM Band
  • Size - Height: 8.00 in ( 203 mm)
  • Size - Depth: 4.00 in ( 102 mm)
  • Size - Width: 6.00 in ( 152 mm)
  • Weight: 2.85 lb ( 1.29 kg)
English: SI:
Performance
RMS Velocity Frequency Range (±3 dB) 4 to 2300 Hz 4 to 2300 Hz
Velocity HP Filter 2 Hz, 1-pole RC 2 Hz, 1-pole RC
Velocity LP Filter 2400 Hz,3-pole Chebyshev 2400 Hz,3-pole Chebyshev
Velocity Resolution 0.001 ips 0.001 ips
Velocity Range 4.096 ips 4.096 ips
RMS Acceleration Frequency Range (±3 dB) 2300 to 15000 Hz 2300 to 15000 Hz
Acceleration HP Filter 2000 Hz,4-pole Chebyshev 2000 Hz,4-pole Chebyshev
Acceleration LP Filter 15k Hz, 3-pole Chebyshev + 1-pole RC 15k Hz, 3-pole Chebyshev + 1-pole RC
Acceleration Resolution 0.005 g 0.005 g [ 1]
Acceleration Range 40.48 g 40.48 g [ 1]
Amplitude Linearity 1% 1% [ 2]
Environmental
Temperature Range (electronics) -4 to +158 °F -20 to +70 °C
Enclosure Rating NEMA 4X IP66
Transmission Range 250 ft to>1 mile radius, installation dependent 250 ft to>1 mile radius, installation dependent [ 3]
Electrical
RMS Velocity Analog Integration, FFT Sum Analog Integration, FFT Sum
RMS Acceleration 3.7 Sec time sample @ 61.4 kHz sample rate 3.7 Sec time sample @ 61.4 kHz sample rate
Filtered Crest Factor (max ) 16 16
Frequency Band 868 MHz ISM Band 868 MHz ISM Band
Number of RF Bands 9 9
Maximum Power (ERP ) 0.75 mW 0.75 mW
RF Data Rate 20 bps 20 bps
ADC/dynamic range 16 bit/>90db 16 bit/>90db
External Battery Power 6 to 13 VDC 6 to 13 VDC
External DC Power (±1 V) 24 VDC 24 VDC
Current Consumption <150 mA <150 mA
Sensor Power Supplied 24 VDC @ 2.2 mA 24 VDC @ 2.2 mA
Physical
Size - Height 8.00 in 203 mm
Size - Depth 4.00 in 102 mm
Size - Width 6.00 in 152 mm
Weight 2.85 lb 1.29 kg
Buffered Sensor Analog Output BNC BNC
Sensor Select timeout 15 min 15 min
Channels per Board 8 8
Input Connector Terminal Strip Terminal Strip
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Conversion Factor 1g = 9.81 m/s².
[ 2] Zero-based, least-squares, straight line method.
[ 3] Typical.
[ 4] See PCB Declaration of Conformance PS202 for Details.
