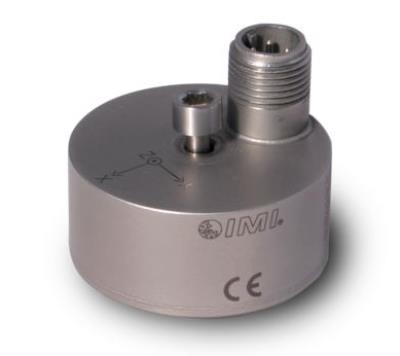

Triaxial, industrial, ceramic shear ICP® accel., 100 mV/g, 2 to 7k Hz, top exit, 4-pin M12 conn., triaxial frequency sweep ISO 17025 accredited calibration
- Sensitivity:
(±10%)100 mV/g
(
10.2 mV/(m/s²))
- Measurement Range:
±50 g
(
±490.5 m/s²)
- Sensing Element:
Ceramic
- Frequency Range:
(+/-3dB)120 to 600000 cpm
(
2 to 10000 Hz)
- Electrical Connection Position:
Top
- Weight:
4.22 oz
(
119.7 gm)
|
English: |
SI: |
|
| Performance |
| Sensitivity (±10 %) |
100 mV/g |
10.2 mV/(m/s²) |
[
1]
|
| Measurement Range |
±50 g |
±490.5 m/s² |
|
| Frequency Range (+/-3 dB) (z axis) |
120 to 600000 cpm |
2 to 10000 Hz |
[
2]
[
4]
|
| Frequency Range (+/-3 dB) (x or y axis) |
120 to 420000 cpm |
2 to 7000 Hz |
|
| Non-Linearity |
±1 % |
±1 % |
[
3]
|
| Broadband Resolution (1) |
560 µg |
5694 µm/sec2 |
[
5]
|
| Resonant Frequency |
1020 kcpm |
17 kHz |
[
5]
|
| Transverse Sensitivity |
≤7 % |
≤7 % |
|
| Environmental |
| Overload Limit (Shock) |
5000 g pk |
49050 m/s² pk |
|
| Temperature Range |
-65 to +250 °F |
-54 to +121 °C |
|
| Temperature Response |
See Graph |
See Graph |
[
5]
|
| Enclosure Rating |
IP68 |
IP68 |
|
| Electrical |
| Settling Time (within 1% of bias) |
≤3.0 sec |
≤3.0 sec |
|
| Discharge Time Constant |
≥0.1 sec |
≥0.1 sec |
|
| Excitation Voltage |
18 to 28 VDC |
18 to 28 VDC |
|
| Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
| Output Impedance |
<350 Ohm |
<350 Ohm |
|
| Output Bias Voltage |
8 to 12 VDC |
8 to 12 VDC |
|
| Spectral Noise (10 Hz) |
40 µg/√Hz |
392 (µm/sec2)/√Hz |
[
5]
|
| Spectral Noise (100 Hz) |
10 µg/√Hz |
98.1 (µm/sec2)/√Hz |
[
5]
|
| Spectral Noise (1 kHz) |
6 µg/√Hz |
58.9 (µm/sec2)/√Hz |
[
5]
|
| Electrical Isolation |
>100000000 Ohm |
>100000000 Ohm |
|
| Electrical Protection |
RFI/ESD |
RFI/ESD |
|
| Physical |
| Size - Diameter |
1.49 in |
37.9 mm |
|
| Size - Height |
1.23 in |
31.3 mm |
|
| Weight |
4.22 oz |
119.7 gm |
[
5]
|
| Mounting |
Through Hole |
Through Hole |
|
| Mounting Torque (Through Bolt) |
2 to 5 ft-lb |
2.7 to 6.8 N-cm |
|
| Sensing Element |
Ceramic |
Ceramic |
|
| Sensing Geometry |
Shear |
Shear |
|
| Housing Material |
Stainless Steel |
Stainless Steel |
|
| Sealing |
Welded Hermetic |
Welded Hermetic |
|
| Electrical Connector |
M12, 4-Pin |
M12, 4-Pin |
|
| Electrical Connection Position |
Top |
Top |
|
| Electrical Connections (Pin 1) |
X axis |
X axis |
|
| Electrical Connections (Chrome-Plated Brass) |
Y axis |
Y axis |
|
| Electrical Connections (Pin 3) |
Z axis |
Z axis |
|
| Electrical Connections (Pin 4) |
Ground |
Ground |
|
* All specifications are at room temperature unless otherwise specified
.
Specification Notes
[
1]
Conversion Factor 1g = 9.81 m/s².
[
2]
1Hz = 60 cpm (cycles per minute).
[
3]
Zero-based, least-squares, straight line method.
[
4]
The high frequency tolerance is accurate within ±10% of the specified frequency.
[
5]
Typical.
[
6]
See PCB Declaration of Conformance PS023 for details.
Accessories
|
|
|
| Supplied |
| ICS-7 |
NIST-traceable triaxial amplitude response cal from 10 Hz to upper 3 dB point |
1 |
| 081A126 |
Mounting bolt 10-32 X .93 |
1 |
| 54102-01 |
|
1 |
