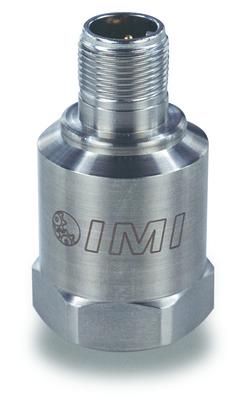

Low freq., industrial, ceramic shear ICP® accel, 100 mV/g, 0.2 to 10k Hz, top exit, 2-pin conn., frequency sweep ISO 17025 accredited calibration
- Sensitivity:
(±5%)100 mV/g
(
10.2 mV/(m/s²))
- Frequency Range:
(±3dB)12 to 600000 cpm
(
0.2 to 10000 Hz)
- Sensing Element:
Ceramic
- Measurement Range:
±50 g
(
±490 m/s²)
- Weight:
5.3 oz
(
150 gm)
|
English: |
SI: |
|
| Performance |
| Sensitivity (±5 %) |
100 mV/g |
10.2 mV/(m/s²) |
[
1]
|
| Measurement Range |
±50 g |
±490 m/s² |
|
| Frequency Range (±5 %) |
30 to 300000 cpm |
0.5 to 5000 Hz |
[
3]
|
| Frequency Range (±10 %) |
22 to 420000 cpm |
0.37 to 7000 Hz |
|
| Frequency Range (±3 dB) |
12 to 600000 cpm |
0.2 to 10000 Hz |
|
| Resonant Frequency |
1380 kcpm |
23 kHz |
[
4]
|
| Broadband Resolution (1) |
100 µg |
981 µm/sec2 |
[
4]
|
| Non-Linearity |
±1 % |
±1 % |
[
2]
|
| Transverse Sensitivity |
≤5 % |
≤5 % |
|
| Environmental |
| Overload Limit (Shock) |
5000 g pk |
49050 m/s² pk |
|
| Temperature Range |
-65 to +250 °F |
-54 to +121 °C |
|
| Temperature Response |
See Graph %/°F |
See Graph %/°F |
[
4]
|
| Enclosure Rating |
IP68 |
IP68 |
|
| Electrical |
| Settling Time (within 1% of bias) |
≤5.0 sec |
≤5.0 sec |
|
| Discharge Time Constant |
≥1.0 sec |
≥1.0 sec |
|
| Excitation Voltage |
18 to 28 VDC |
18 to 28 VDC |
|
| Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
| Output Impedance |
<100 Ohm |
<100 Ohm |
|
| Output Bias Voltage |
8 to 12 VDC |
8 to 12 VDC |
|
| Spectral Noise (1 Hz) |
15 µg/√Hz |
147.2 (µm/sec2)/√Hz |
[
4]
|
| Spectral Noise (10 Hz) |
4.0 µg/√Hz |
39.2 (µm/sec2)/√Hz |
[
4]
|
| Spectral Noise (100 Hz) |
1.5 µg/√Hz |
14.7 (µm/sec2)/√Hz |
[
4]
|
| Spectral Noise (1 kHz) |
0.7 µg/√Hz |
6.9 (µm/sec2)/√Hz |
[
4]
|
| Electrical Protection |
RFI/ESD |
RFI/ESD |
|
| Electrical Isolation (Case) |
>100000000 Ohm |
>100000000 Ohm |
|
| Physical |
| Size - Hex |
1 3/16 in |
30.2 mm |
|
| Size - Height |
2 3/16 in |
55.6 mm |
|
| Weight |
5.3 oz |
150 gm |
|
| Mounting Thread |
1/4-28 UNF |
1/4-28 UNF |
[
5]
|
| Mounting Torque |
2 to 5 ft-lb |
2.7 to 6.8 Nm |
|
| Sensing Element |
Ceramic |
Ceramic |
|
| Sensing Geometry |
Shear |
Shear |
|
| Housing Material |
Stainless Steel |
Stainless Steel |
|
| Sealing |
Welded Hermetic |
Welded Hermetic |
|
| Electrical Connector |
2-Pin MIL-C-5015 |
2-Pin MIL-C-5015 |
|
| Electrical Connection Position |
Top |
Top |
|
* All specifications are at room temperature unless otherwise specified
.
Specification Notes
[
1]
Conversion Factor 1g = 9.81 m/s².
[
2]
Zero-based, least-squares, straight line method.
[
3]
The high frequency tolerance is accurate within ±10% of the specified frequency.
[
4]
Typical.
[
5]
1/4-28 has no equivalent in S.I. units.
[
6]
See PCB Declaration of Conformance PS023 for details.
Accessories
|
|
|
| Supplied |
| ICS-1 |
Calibration of industrial accel. with full frequency response plot and NIST-traceable certificate |
1 |
| 081A40 |
Mounting stud, 1/4-28 x 0.438" long stainless steel screw with hex socket and brass tip |
1 |
| 085A31 |
Protective insulated boot |
1 |
Optional Versions
(
M )
Metric Mount
| Accessories: |
| Supplied |
M081A61 |
Mounting Stud |
1 |
(
TO )
Temperature Output
| Temperature Output Range |
+36 to +250 |
+2 to +121 |
| Temperature Scale Factor |
5.56 mV/°F + 32 |
+10 mV/°C |
| Electrical Connector |
3-Pin |
| Electrical Connections |
Acceleration Output |
| Electrical Connections |
Temperature Output |
| Electrical Connections |
Ground |
