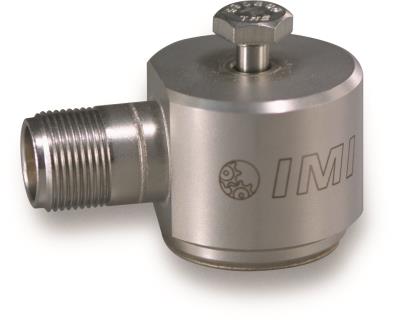

Model : 625B02 | Low Frequency Industrial ICP® Accelerometer

Click for lead times
Lead Time for 6-10 is 6 Wks
ring-style, industrial, ceramic shear icp® accel, 500 mv/g, 0.2 to 6k hz, side exit, 2-pin conn., frequency sweep iso 17025 accredited calibration
$ 490.00 USD
(Pricing valid in US only!)

Ring-style, industrial, ceramic shear ICP® accel, 500 mV/g, 0.2 to 6k Hz, side exit, 2-pin conn., frequency sweep ISO 17025 accredited calibration

  • Sensitivity: (±5%)500 mV/g ( 51 mV/(m/s²))
  • Frequency Range: (±3dB)12 to 360000 cpm ( 0.2 to 6000 Hz)
  • Sensing Element: Ceramic
  • Measurement Range: ±10 g ( ±98 m/s²)
  • Weight: 6.1 oz ( 173 gm)

RELATED PRODUCTS



080A118
080A118

Sensor mounting pad, adhesive or weld mount to machine, 1" diameter, 1/4-28 threaded hole for sensor mount



Add to Cart for Quote
Add to Cart
080A132
080A132

Curved surface magnet, 1.5" diameter, 55 lbf, 1/4-28 threaded hole w/mounting stud



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±5 %) 500 mV/g 51 mV/(m/s²) [ 1]
Measurement Range ±10 g ±98 m/s²
Frequency Range (±5 %) 30 to 120000 cpm 0.5 to 2000 Hz [ 3]
Frequency Range (±10 %) 22 to 240000 cpm 0.37 to 4000 Hz
Frequency Range (±3 dB) 12 to 360000 cpm 0.2 to 6000 Hz
Resonant Frequency 720 kcpm 12 kHz [ 4]
Broadband Resolution (1) 15 µg 147 µm/sec2 [ 4]
Non-Linearity ±1 % ±1 % [ 2]
Transverse Sensitivity ≤7 % ≤7 %
Environmental
Overload Limit (Shock) 2500 g pk 24525 m/s² pk
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [ 4]
Enclosure Rating IP68 IP68
Electrical
Settling Time (within 1% of bias) ≤4.5 sec ≤4.5 sec
Discharge Time Constant ≥1.0 sec ≥1.0 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Spectral Noise (10 Hz) 0.9 µg/√Hz 8.8 (µm/sec2)/√Hz [ 4]
Spectral Noise (100 Hz) 0.7 µg/√Hz 7.0 (µm/sec2)/√Hz [ 4]
Spectral Noise (1 kHz) 0.3 µg/√Hz 3.1 (µm/sec2)/√Hz [ 4]
Electrical Protection RFI/ESD RFI/ESD
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Size - Diameter 1.3 in 35.1 mm
Size - Height 1 1/8 in 28.7 mm
Weight 6.1 oz 173 gm
Mounting Through Hole Through Hole
Mounting Thread 1/4-28 Male 1/4-28 Male [ 5]
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Electrical Connection Position Side Side
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Conversion Factor 1g = 9.81 m/s².
[ 2] Zero-based, least-squares, straight line method.
[ 3] The high frequency tolerance is accurate within ±10% of the specified frequency.
[ 4] Typical.
[ 5] 1/4-28 has no equivalent in S.I. units.
[ 6] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
ICS-1 Calibration of industrial accel. with full frequency response plot and NIST-traceable certificate 1
080B45 Protective thermal boot for use with series 625 sensors 1
081A73 1/4-28 x 1.34" hex head captive thru bolt 1


Optional Versions


( LB ) Low Bias Voltage
English SI
Output Bias Voltage 6 to 8
Measurement Range ±7 ±69
Excitation Voltage 12 to 28


( M ) Metric Mount
Accessories:
Supplied M081A73 Captive Mounting Bolt 1


( TO ) Temperature Output
English SI
Temperature Scale Factor 5.56 mV/°F + 32 +10 mV/°C
Electrical Connector 3-Pin
Electrical Connections Ground
Temperature Output Range +36 to +250 +2 to +121
Electrical Connections Acceleration Output
Electrical Connections Temperature Output
