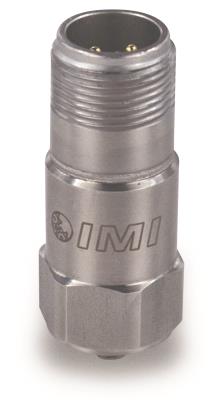

General purpose, industrial, ceramic shear ICP® accel, 100 mV/g, 0.4 to 14k Hz, top exit, 2-pin conn., single point ISO 17025 accredited calibration, for use with Echo® system
- Sensitivity: (±10%)100 mV/g
(10.2 mV/(m/s²))
- Frequency Range: (±3dB)24 to 840000 cpm
(0.4 to 14000 Hz)
- Sensing Element: Ceramic
- Measurement Range: ±80 g
(±785 m/s²)
- Weight: 1.8 oz
(51 gm)
|
English: |
SI: |
|
Performance |
Sensitivity (±10 %) |
100 mV/g |
10.2 mV/(m/s²) |
[1]
|
Measurement Range |
±80 g |
±785 m/s² |
|
Frequency Range (±3 dB) |
24 to 840000 cpm |
0.4 to 14000 Hz |
[3]
|
Resonant Frequency |
1500 kcpm |
25 kHz |
[4]
|
Broadband Resolution (1) |
550 µg |
5395 µm/sec2 |
[4]
|
Non-Linearity |
±1 % |
±1 % |
[2]
|
Transverse Sensitivity |
≤7 % |
≤7 % |
|
Environmental |
Overload Limit (Shock) |
5000 g pk |
49050 m/s² pk |
|
Temperature Range |
-65 to +250 °F |
-54 to +121 °C |
|
Temperature Response |
See Graph %/°F |
See Graph %/°F |
[4]
|
Enclosure Rating |
IP68 |
IP68 |
|
Electrical |
Settling Time (within 1% of bias) |
≤2.0 sec |
≤2.0 sec |
|
Discharge Time Constant |
≥0.4 sec |
≥0.4 sec |
|
Excitation Voltage |
24 to 28 VDC |
24 to 28 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
<150 Ohm |
<150 Ohm |
|
Output Bias Voltage |
10 to 14 VDC |
10 to 14 VDC |
|
Spectral Noise (10 Hz) |
10 µg/√Hz |
98.1 (µm/sec2)/√Hz |
[4]
|
Spectral Noise (100 Hz) |
7 µg/√Hz |
68.7 (µm/sec2)/√Hz |
[4]
|
Spectral Noise (1 kHz) |
7 µg/√Hz |
68.7 (µm/sec2)/√Hz |
[4]
|
Electrical Isolation (Case) |
>100000000 Ohm |
>100000000 Ohm |
|
Physical |
Size - Hex |
11/16 in |
18 mm |
|
Size - Height |
1.65 in |
42.2 mm |
|
Weight |
1.8 oz |
51 gm |
|
Mounting Thread |
1/4-28 Female |
No Metric Equivalent |
[5]
|
Mounting Torque |
2 to 5 ft-lb |
2.7 to 6.8 Nm |
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Stainless Steel |
Stainless Steel |
|
Sealing |
Welded Hermetic |
Welded Hermetic |
|
Electrical Connector |
2-Pin MIL-C-5015 |
2-Pin MIL-C-5015 |
|
Electrical Connection Position |
Top |
Top |
|
* All specifications are at room temperature unless otherwise specified
.

Specification Notes
[1] Conversion Factor 1g = 9.81 m/s².
[2] Zero-based, least-squares, straight line method.
[3] The high frequency tolerance is accurate within ±10% of the specified frequency.
[4] Typical.
[5] 1/4-28 has no equivalent in S.I. units.
[6] See PCB Declaration of Conformance PS023 or PS061 for details.
Accessories
|
|
|
Supplied |
081A40 |
Mounting stud, 1/4-28 x 0.438" long stainless steel screw with hex socket and brass tip |
1 |
Optional Versions
( EX ) Hazardous Area Approval- contact factory for specific approvals
( M ) Metric Mount
Accessories: |
Supplied |
M081A61 |
Mounting Stud |
1 |
