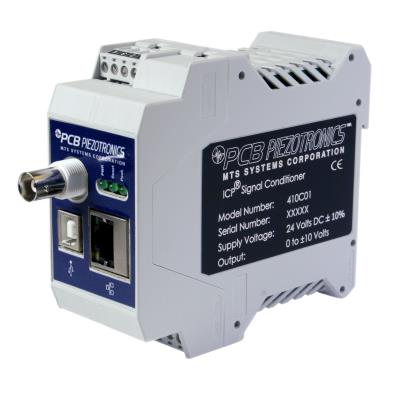

ICP® SENSOR SIGNAL CONDITIONER WITH PEAK HOLD OUTPUT SIGNAL

Model 410C01

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Lead Time for 1-10 is 3 Wks.
Lead Time for 11-20 is 4 Wks.
Lead Time for 21-30 is 6 Wks.
Lead Time for 21-30 is 6 Wks.
  • CE
  • IP

ICP® sensor signal cond., 35mm DIN-rail mount, peak track hold and waveform analog output, AC/DC coupling, gain, setup configurable via USB or Ethernet communications.

    Specification Notes


    [1] Typical.
    [2] Optically isolated contact closure.
    [3] See PCB Declaration of Conformance PS024 for details.

    English: SI:
    Performance
    Channels 1 1
    Sensor Input Type(s) ICP® ICP®
    Voltage Gain (+/-10%)Software Selectable ) X1 X2 X4 X8 X10 X16 X20 X1 X2 X4 X8 X10 X16 X20
    Output Range (Digital ) (Peak Hold) 0 to 10 V 0 to 10 V
    Output Range (Analog Signal) ±10 V ±10 V
    Low Frequency Response (+/-10 %) (AC mode) 0.5 Hz 0.5 Hz
    Low Frequency Response (DC mode) Governed by Sensor DTC Governed by Sensor DTC
    High Frequency Response (+/-5% ) 10 kHz 10 kHz
    Control Interface
    Digital Control Interface USB, Ethernet USB, Ethernet
    Human Interface Downloadable Software Configurator Downloadable Software Configurator
    Display None None
    Environmental
    Temperature Range 60 to 110 °F 15 to 45 °C
    Electrical
    DC Power (±10 %) 24 VDC 24 VDC
    DC Power (Maximum ) 200 mA 200 mA
    Excitation Voltage (To Sensor) 20 VDC 20 VDC [1]
    DC Offset (After reset) ≤50 mV ≤50 mV
    Constant Current Excitation (To Sensor) 4 mA 4 mA [1]
    Discharge Time Constant 1 sec 1 sec [1]
    Broadband Electrical Noise (1 to 10 kHz) (Gain x1) 200 µV rms 200 µV rms [1]
    Input (Reset) Optically Isolated Optically Isolated
    Polarity (Tension/Compression) Software Selectable Software Selectable
    Physical
    Electrical Connector (ICP® Sensor Input) BNC Jack BNC Jack
    Electrical Connector (Peak Analog Output) Screw Terminal Screw Terminal
    Electrical Connector (Wave Form Analog Output) Screw Terminal Screw Terminal
    Electrical Connector (Analog Output Common) Screw Terminal Screw Terminal [2]
    Electrical Connector (Ethernet) RJ45 RJ45
    Electrical Connector (Input Reset) Screw Terminal Screw Terminal
    Electrical Connector (USB Interface) Type B Type B
    Mounting DIN Rail DIN Rail
    Size - Height 3.9 in 99 mm
    Size - Width 1.78 in 45.2 mm
    Size - Length 4.46 in 113.3 mm
    Weight 0.46 lb 208 gm [1]
