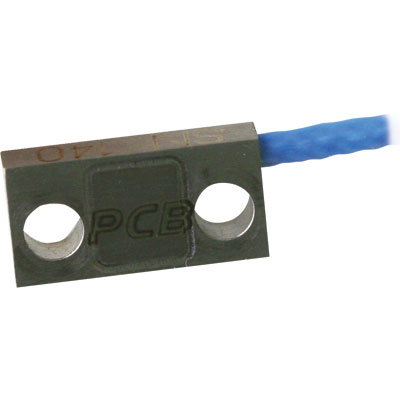

mems shock accelerometer, 60 kg, thru hole mount, 096 integral cable

HIGH AMPLITUDE MEMS SHOCK ACCELEROMETER

Model 3991B1160KG

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

MEMS Shock Accelerometer, 60 Kg, thru hole mount, 096 integral cable

  • Sensitivity: (±50%)0.003 mV/g (0.0003 mV/(m/s²))
  • Measurement Range: ±0 to 60000 g (±0 to 588400 m/s² pk)
  • Frequency Range: (1dB)0 to 20000 Hz
  • Sensing Geometry: Full Active
  • Mounting: Through Holes (2)
  • Weight: 0.045 oz (1.28 gm)

Additional configurations:

Specification Notes

[1] Typical.
[2] Verified with test data provided on supplied calibration certificate.
[3] Sensitivity is proportional to excitation voltage, and at other excitation values, sensitivity can be predicted from the 10VDC calibrated value with a small (<~.5%) increase in uncertainty.
[1] Typical.
[4] -65 to +250 °F, ref. 75 °F (-54 to +121 °C, ref. 24 °C)
[5] Half-sine pulse duration, >= 20 µsec.
[1] Typical.
[6] Settling Time is the maximum time after power-up for the Offset Voltage to be within +/-2% of Measurement Range output of the final offset value. Mounting surface must be at thermal equilibrium.
[2] Verified with test data provided on supplied calibration certificate.
[7] Individually tested to ensure compliance with specified value.
[1] Typical.
[8] See PCB Declaration of Conformance PS165 for details.

English: SI:
Performance
Sensitivity (±50 %) (at 10 VDC excitation) 0.003 mV/g 0.0003 mV/(m/s²) [2]
Sensitivity 0.0003 mV/V/g 0.00003 mV/V/(m/s²) [3]
Measurement Range ±0 to 60000 g ±0 to 588400 m/s² pk
Frequency Range (1 dB) 0 to 20000 Hz 0 to 20000 Hz
Resonant Frequency >120 kHz >120 kHz
Damping Ratio 2 % Critical 2 % Critical [1]
Non-Linearity (per 10,000 g (98,100 m/s²)) ≤1 % ≤1 %
Transverse Sensitivity ≤3 % ≤3 %
Environmental
Overload Limit (Shock) ±100000 g pk ±980665 m/s² pk [5]
Overload Limit (Mechanical Stops) ≥80000 g ≥782534 m/s² pk
Temperature Range (Operating) -65 to 250 °F -54 to 121 °C
Temperature Coefficient of Sensitivity -0.11 %/°F -0.20 %/°C [1]
Zero g Offset Temperature Shift ±10 mV ±10 mV [4]
Base Strain Sensitivity .3 g/µε 2.94 (m/s²)/µε [1]
Electrical
Excitation Voltage (Maximum) 15.0 VDC 15.0 VDC
Current Consumption <3 mA <3 mA
Input Resistance (±2000 Ohm) 6000 Ohm 6000 Ohm [1] [2]
Output Resistance (±2000 Ohm) 6000 Ohm 6000 Ohm [1] [2]
Offset Voltage ±40 mVDC ±40 mVDC [2]
Settling Time 0.01 sec 0.01 sec [6]
Electrical Isolation (Case) ≥10000000 Ohm ≥10000000 Ohm [7]
Physical
Sensing Element Piezoresistive MEMS Piezoresistive MEMS
Sensing Geometry Full Active Full Active
Housing Material Titanium Titanium
Sealing Epoxy Epoxy
Size - Height 0.120 in 3.05 mm
Size - Length 0.56 in 14.22 mm
Size - Width 0.28 in 7.11 mm
Weight (without cable) 0.045 oz 1.28 gm [1]
Electrical Connector Integral Cable Integral Cable
Electrical Connection Position Side Side
Cable Type 096 4-cond silicone jacket 096 4-cond silicone jacket
Cable Termination Pigtail Ends Pigtail Ends
Cable Length 10 ft 3.05 m
Mounting Through Holes (2) Through Holes (2)

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
ACS-62 Calibration of High G PR Accelerometer, 10.0 VDC excitation 1
081A110 4-40 x 1/4" socket head cap screw and washer for Series 3991 2
