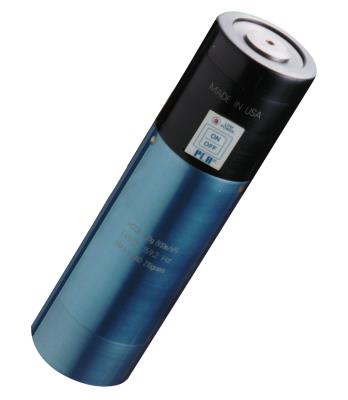

Platinum Stock Product Handheld shaker, 1g at 159.2 Hz (for up to 210 grams total weight of sensor, cable and mtg. accessories).
- Acceleration Output:
(±3%)1.00 g rms
(
9.81 m/s² rms)
- Velocity Output:
0.39 in/sec rms
(
9.81 mm/s rms)
- Operating Frequency:
(±1%)159.2 Hz
- Maximum Load:
7.4 oz
(
210 gm)
- Weight:
31 oz
(
900 gm)
|
English: |
SI: |
|
Performance |
Operating Frequency (±1 %) |
159.2 Hz |
159.2 Hz |
|
Acceleration Output (±3 %) |
1.00 g rms |
9.81 m/s² rms |
[
5]
|
Velocity Output |
0.39 in/sec rms |
9.81 mm/s rms |
[
4]
|
Displacement Output |
0.39 mil rms |
9.81 µm rms |
[
4]
|
Transverse Output |
≤3 % |
≤3 % |
|
Distortion (0 to 99 grams load) |
≤2 % |
≤2 % |
|
Distortion (100 to 149 grams load) |
≤5 % |
≤5 % |
|
Distortion (150 to 210 grams load) |
≤9 % |
≤9 % |
|
Maximum Load |
7.4 oz |
210 gm |
[
1]
|
Automatic Switch Off Time |
1.0 to 2.5 minutes |
1.0 to 2.5 minutes |
[
3]
|
Calibration Cycles (2 gram load) |
320 cycles |
320 cycles |
[
2]
|
Calibration Cycles (25 gram load) |
600 cycles |
600 cycles |
[
2]
|
Calibration Cycles (50 gram load) |
1600 cycles |
1600 cycles |
[
2]
|
Calibration Cycles (100 gram load) |
400 cycles |
400 cycles |
[
2]
|
Calibration Cycles (150 gram load) |
160 cycles |
160 cycles |
[
2]
|
Calibration Cycles (210 gram load) |
80 cycles |
80 cycles |
[
2]
|
Environmental |
Temperature Range (Operating) |
+15 to +130 °F |
-10 to +55 °C |
|
Electrical |
Ramp-Up time |
≤3 sec |
≤3 sec |
[
6]
|
Internal Battery (Quantity) |
4 |
4 |
|
Internal Battery (Type) |
AA |
AA |
[
7]
|
DC Power (±5 %) |
12 VDC |
12 VDC |
[
9]
|
DC Power |
1.67 Amps |
1.67 Amps |
[
8]
[
9]
|
Battery Life (2 gram load) |
8 hours |
8 hours |
[
2]
|
Battery Life (25 gram load) |
15 hours |
15 hours |
[
2]
|
Battery Life (50 gram load) |
40 hours |
40 hours |
[
2]
|
Battery Life (100 gram load) |
10 hours |
10 hours |
[
2]
|
Battery Life (150 gram load) |
4 hours |
4 hours |
[
2]
|
Battery Life (210 gram load) |
2 hours |
2 hours |
[
2]
|
Physical |
Size - Diameter |
2.2 in |
56 mm |
|
Size - Height |
7.8 in |
200 mm |
|
Weight (with batteries) |
31 oz |
900 gm |
[
6]
|
Mounting Thread |
10-32 Female |
10-32 Female |
[
10]
[
11]
|
Mounting Torque (Maximum) |
10 in-lb |
112 N-cm |
[
11]
|
* All specifications are at room temperature unless otherwise specified
.
Specification Notes
[
1]
Maximum load includes sensor, connector and cabling.
[
2]
Approximate values, based on automatic switch off time and dependent on type of batteries.
[
3]
Unit supplied set to auto shut off; see manual for continuous use selection.
[
4]
Calculated values for reference only.
[
5]
Unit supplied set to rms; see manual for peak selection.
[
6]
Typical.
[
2]
Approximate values, based on automatic switch off time and dependent on type of batteries.
[
7]
Alkaline type recommended for longest service life.
[
8]
Maximum.
[
9]
This specification for external DC power supply (optional).
[
6]
Typical.
[
10]
Test sensor should be hand tightened (without tools).
[
11]
Transducer to shaker table.
[
12]
See PCB Declaration of Conformance PS022 for details.
Accessories
|
|
|
Supplied |
073A15 |
Battery clip for the 394C06 hand held shaker |
1 |
Optional |
073A16 |
DC switching power supply (for Model 394C06 699B02) |
1 |
Supplied |
080A109 |
Petro Wax, one square, 1" x 1" x 0.25" |
1 |
Optional |
080A150 |
Mounting pad, 1/4-28 thd (for Model 394C06) |
1 |
Supplied |
080A178 |
Adhesive mtg base, 0.5" hex x 0.12" thk, 10-32 integral stud, aluminum w/ insulating hardcoat finish |
1 |
080A84 |
Calibration adapter fixture stainless steel, 0.75" dia., 5-40 female to 10-32 male |
1 |
080A85 |
Calibration adaptor fixture, M3 x 0.50 tapped hole to integral 10-32 thd stud |
1 |
Optional |
080B44 |
Calibrator adaptor with jumper cable, 3-pin to 2-pin Microtech with Model 070A36 (for Model 333B) |
1 |
Supplied |
081A08 |
Mounting stud, 10-32 to 1/4-28 x 0.30" long, BeCu |
1 |
M081B05 |
Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu |
1 |
M081B23 |
Metric mounting stud, 10-32 to M5 x 0.80 |
1 |
081B05 |
Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder |
2 |
Optional Versions
(
M )
Metric Mount
Acceleration Output (±3 %) |
1.02 g rms |
10.0 m/s² rms |
