vibration calibration standard system, 100 mv/g (for use with industrial & high mass accels.)

Calibration System

Model 394A10

Add to Quote
  • IP

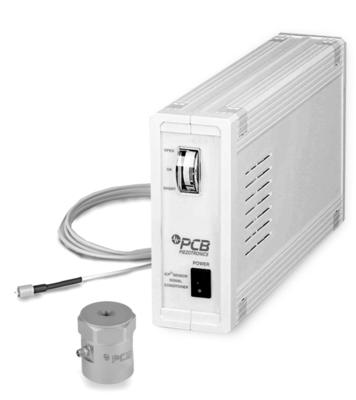

Vibration calibration standard system, 100 mV/g (for use with industrial & high mass accels.)

System includes the following components:
Model 301A10 back-to-back reference accelerometer
Model 003C10 sensor cable, 10 ft. length
Model 482A23 signal conditioner
Model 012A03 output cable

    Specification Notes

    [1] Zero-based, least-squares, straight line method.
    [2] Typical.
    [3] Provided by 488A04.
    [4] Mounting thread typical top and bottom of sensor.

    English: SI:
    Performance
    Sensitivity (±0.5 %) (Voltage) 100 mV/g 10.2 mV/(m/s²)
    Measurement Range (±5V ) (Output) 50 ±g pk 490 ±m/s² pk
    Frequency Range (±2 %) 5 to 5000 Hz 5 to 5000 Hz
    Frequency Range (±5 %) 0.5 to 10000 Hz 0.5 to 10000 Hz
    Frequency Range (±10 %) 0.3 to 14000 Hz 0.3 to 14000 Hz
    Resonant Frequency (Mounted) ≥35 kHz ≥35 kHz
    Broadband Resolution (1 Hz) 0.004 g rms 0.039 m/s² rms [2]
    Amplitude Linearity ≤1 % ≤1 % [1]
    Transverse Sensitivity ≤3 % ≤3 %
    Sensitivity (Base Strain) 0.0001 g/µε 0.001 (m/s²)/µε
    Environmental
    Warm Up <5.0 sec <5.0 sec
    Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
    Electrical
    Spectral Noise (1 Hz) 235 (µm/s²)/√Hz 2303 [2]
    Spectral Noise (10 Hz) 55 (µm/s²)/√Hz 539 [2]
    Spectral Noise (100 Hz) 18 (µm/s²)/√Hz 176 [2]
    Spectral Noise (1 kHz) 12 (µm/s²)/√Hz 118 [2]
    Physical
    Sensing Element Quartz/Shear Quartz/Shear
    Housing Material Stainless Steel/Welded Stainless Steel/Welded
    Size - Hex 1.19 in 30.2 mm
    Size - Height 1.5 in 38.1 mm
    Weight 6.2 oz 176 gm [2]
    Electrical Connector 10-32 Coaxial/Side 10-32 Coaxial/Side
    Mounting Thread (Standard) 1/4-28 UNF 1/4-28 UNF [4]
    Mounting Torque 20 to 30 in-lb 225 to 338 N-cm
    Power (±5% ) (Required) 36 VDC 36 VDC [3]
    Size - Height 6.3 in 16 cm
    Size - Width 2.4 in 6.1 cm
    Size - Depth 11.0 in 28 cm
    Weight 1.51 lb 685 gm [2]
    Cable Connector (Input) BNC Jack/Rear BNC Jack/Rear
    Cable Connector (Output) BNC Jack/Rear BNC Jack/Rear

    * All specifications are at room temperature unless otherwise specified.

    Accessories
    Supplied
    ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
    ACS-4 Single axis, low frequency phase and amplitude response cal from 0.5 to 10 Hz, (requires ACS-1 and minimum sensitivity of 20 mV/g) 1
    002C10 General purpose coaxial cable, white FEP jacket, 10-ft, 10-32 plug to BNC plug 1
    012A03 Low-cost, black coaxial cable (RG58/U), 3-ft, BNC plug to BNC plug 1
    017AXX 1
    301A10 Calibration ICP® accel., 100 mV/g, 50g, 0.5 to 10 kHz, 10-32 side conn., 1/4-28 Bottom, 1/4-28 Top 1
    482A23 1-channel, line-powered, ICP® sensor signal cond., BNC input/output conn. X0.9 to x1.1 gain, (for use in 394A10/ 394A11 systems) 1
    488B04 Universal AC power adapter, 100-240 VAC/ 50-60 Hz input, 33 VDC output, 5-pin DIN (for models 482C05 and 482C15), line cord 1
    081A08 Mounting stud, 10-32 to 1/4-28 x 0.30" long, BeCu 2
    081B20 Mounting stud, 1/4-28 to 1/4-28 x 0.365" long, BeCu w/shoulder 2
    M081B20 Metric mounting stud, 1/4-28 to M6 x 0.75, BeCu w/shoulder 2

    Optional Versions

    (M) Metric Mount

    English SI
    Sensitivity (&#177;0.5 ) 10 mV/(m/s²) 98 mV/g
