Model : 356A16 | Triaxial ICP® Accelerometer

Click for lead times
Lead Time for 1-10 is 10 Wks
Lead Time for 11-20 is 12 Wks

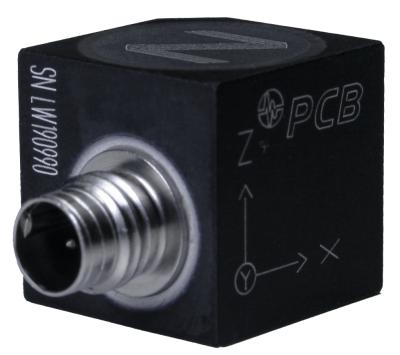

platinum stock products; triaxial, high sensitivity, ceramic shear icp® accel., 100 mv/g, 0.5 to 5k hz, aluminum hsg, 4-pin conn.
$ 1,191.00 USD
(Pricing valid in US only!)

Platinum Stock Products; Triaxial, high sensitivity, ceramic shear ICP® accel., 100 mV/g, 0.5 to 5k Hz, aluminum hsg, 4-pin conn.

  • Sensitivity: (±10%)100 mV/g ( 10.2 mV/(m/s²))
  • Measurement Range: ±50 g pk ( ±490 m/s² pk)
  • Electrical Connector: 1/4-28 4-Pin

RELATED PRODUCTS



034G10
034G10

4-conductor, low noise, shielded FEP cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X Y Z)



Add to Cart for Quote
Add to Cart
010G10
010G10

4-conductor, shielded, FEP cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X,Y,Z)



Add to Cart for Quote
Add to Cart
034W10
034W10

4-conductor, twisted bundle, low noise, shielded, lightweight FEP cable, 10-ft, 1/4-28 4-socket plug, IP68 rated to triple splice assembly with (3) 1-ft coaxial cables each with a BNC plug (AC)



Add to Cart for Quote
Add to Cart
078G10
078G10

4-conductor, twisted bundle, low noise, shielded, flexible polyurethane cable, 10-ft, 1/4-28 4-socket plug to (3) BNC plugs (labeled X, Y, Z)



Add to Cart for Quote
Add to Cart
078W10
078W10

4-conductor, twisted bundle, low noise, shielded, flexible polyurethane cable, 10-ft, 1/4-28 4-socket plug, IP-68 rated to triple splice assembly with (3) 1-ft coaxial cables each with a BNC plug (AC)



Add to Cart for Quote
Add to Cart
036G10
036G10

4-conductor, silicone jacket cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X, Y, Z)



Add to Cart for Quote
Add to Cart
080A160
080A160

Quick clip adhesive mtg base (for Models 356A02, 356A15, 356A16 and 356A17)



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²)
Measurement Range ±50 g pk ±490 m/s² pk
Frequency Range (±5 %) (y or z axis) 0.5 to 5000 Hz 0.5 to 5000 Hz
Frequency Range (±5 %) (x axis) 0.5 to 4500 Hz 0.5 to 4500 Hz
Frequency Range (±10 ) 0.3 to 6000 Hz 0.3 to 6000 Hz
Resonant Frequency ≥25 kHz ≥25 kHz
Broadband Resolution (1) 0.0001 g rms 0.001 m/s² rms [ 2]
Phase Response (±5 °) 1.0 to 5000 Hz 1.0 to 5000 Hz
Non-Linearity ≤1 % ≤1 % [ 1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±7000 g pk ±68600 m/s² pk
Temperature Range (Operating) -65 to +176 °F -54 to +80 °C
Temperature Response See Graph %/°F See Graph %/°F [ 2]
Base Strain Sensitivity 0.001 g/µε 0.01 (m/s²)/µε [ 2]
Electrical
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant 1.0 to 3.0 sec 1.0 to 3.0 sec
Settling Time (within 10% of bias) <10 sec <10 sec
Spectral Noise (1 Hz) 40 µg/√Hz 392 (µm/sec2)/√Hz [ 2]
Spectral Noise (10 Hz) 10 µg/√Hz 98 (µm/sec2)/√Hz [ 2]
Spectral Noise (100 Hz) 3 µg/√Hz 29.4 (µm/sec2)/√Hz [ 2]
Spectral Noise (1 kHz) 1 µg/√Hz 9.8 (µm/sec2)/√Hz [ 2]
Spectral Noise (10 kHz) 0.5 µg/√Hz 4.9 (µm/sec2)/√Hz [ 2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Anodized Aluminum Anodized Aluminum
Sealing Epoxy Epoxy
Size - Height 0.55 in 14.0 mm
Size - Length 0.80 in 20.3 mm
Size - Width 0.55 in 14.0 mm
Weight 0.26 oz 7.4 gm [ 2]
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side
Mounting Thread 10-32 Female 10-32 Female
Mounting Torque 10 to 20 in-lb 113 to 225 N-cm
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A12 Adhesive mtg base, 0.75" hex x 0.2" thk, 10-32 tapped hole, aluminum w/insolation hardcoat finish 1
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1
M081B05 Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu 1


Optional Versions


( A ) Adhesive Mount
Accessories:
Supplied 080A90 Quick Bonding Gel 1
Supplied 080A109 Petro Wax 1


( T ) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4
English SI
Temperature Range -65 to +176 °F -54 to +80 °C
Output Bias Voltage 8.5 to 13.0 VDC


( TLA ) TEDS LMS International - Free Format
English SI
Temperature Range -65 to +176 °F -54 to +80 °C
Output Bias Voltage 8.5 to 13.0 VDC


( TLB ) TEDS LMS International - Automotive Format
English SI
Temperature Range -65 to +176 °F -54 to +80 °C
Output Bias Voltage 8.5 to 13.0 VDC


( TLC ) TEDS LMS International - Aeronautical Format
English SI
Temperature Range -65 to +176 °F -54 to +80 °C
Output Bias Voltage 8.5 to 13.0 VDC


( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4
English SI
Temperature Range -65 to +176 -54 to +80
Output Bias Voltage 8.5 to 13.0
