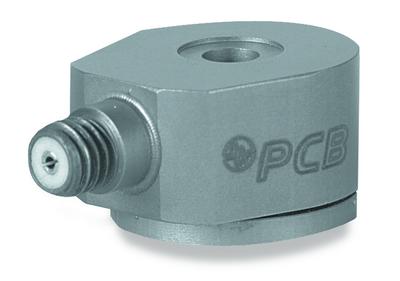

Ring-style, high sensitivity, ceramic shear ICP® accel., 100 mV/g, 1 to 10k Hz, 10-32 side conn.
- Sensitivity:
(±10%)100 mV/g
(
10.19 mV/(m/s²))
- Measurement Range:
±50 g pk
(
±490 m/s² pk)
- Broadband Resolution:
0.0001 g rms
(
0.0009 m/s² rms)
- Frequency Range:
(±5%)1 to 10000 Hz
- Sensing Element:
Ceramic
- Weight:
0.35 oz
(
10 gm)
|
English: |
SI: |
|
Performance |
Sensitivity (±10 %) |
100 mV/g |
10.19 mV/(m/s²) |
|
Measurement Range |
±50 g pk |
±490 m/s² pk |
|
Frequency Range (±5 %) |
1 to 10000 Hz |
1 to 10000 Hz |
|
Frequency Range (±10 %) |
0.6 to 12000 Hz |
0.6 to 12000 Hz |
|
Frequency Range (±3 dB) |
0.3 to 17000 Hz |
0.3 to 17000 Hz |
|
Resonant Frequency |
≥35 kHz |
≥35 kHz |
|
Broadband Resolution (1) |
0.0001 g rms |
0.0009 m/s² rms |
[
2]
|
Non-Linearity |
≤1 % |
≤1 % |
[
1]
|
Transverse Sensitivity |
≤5 % |
≤5 % |
[
3]
|
Environmental |
Overload Limit |
±5000 g pk |
±49000 m/s² pk |
|
Temperature Range |
-65 to +250 °F |
-54 to +121 °C |
|
Temperature Response |
See Graph %/°F |
See Graph %/°F |
[
2]
|
Base Strain Sensitivity |
0.05 g/µε |
0.49 (m/s²)/µε |
[
2]
|
Electrical |
Excitation Voltage |
18 to 30 VDC |
18 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤200 Ohm |
≤200 Ohm |
|
Output Bias Voltage |
7 to 13 VDC |
7 to 13 VDC |
|
Discharge Time Constant |
0.5 to 2 sec |
0.5 to 2 sec |
|
Spectral Noise (10 Hz) |
6 µg/√Hz |
59 (µm/sec2)/√Hz |
[
2]
|
Spectral Noise (100 Hz) |
2 µg/√Hz |
19 (µm/sec2)/√Hz |
[
2]
|
Spectral Noise (1 kHz) |
1 µg/√Hz |
10 (µm/sec2)/√Hz |
[
2]
|
Electrical Isolation (Base) |
>100000000 Ohm |
>100000000 Ohm |
|
Physical |
Size - Length |
0.95 in |
24.1 mm |
|
Size - Width |
0.63 in |
16.0 mm |
|
Weight |
0.35 oz |
10 gm |
[
2]
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Hermetic |
Hermetic |
|
Electrical Connector |
10-32 Coaxial Jack |
10-32 Coaxial Jack |
|
Electrical Connection Position |
Side |
Side |
|
Mounting |
Through Hole |
Through Hole |
|
* All specifications are at room temperature unless otherwise specified
.

Specification Notes
[
1]
Zero-based, least-squares, straight line method.
[
2]
Typical.
[
3]
Transverse sensitivity is typically ≤ 3%.
[
2]
Typical.
[
4]
See PCB Declaration of Conformance PS023 for details.
Accessories
|
|
|
Supplied |
039A22 |
Allen wrench, 7/64" hex head (for use with 6-32 thd cap screws) |
1 |
080A109 |
Petro Wax, one square, 1" x 1" x 0.25" |
1 |
081B45 |
Off ground socket head cap screw assembly, 6-32 UNC-2A thd., 0.63 length, stainless steel. |
1 |
ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
Optional Versions
(
A )
Adhesive Mount
Accessories: |
Supplied |
080A90 |
Quick Bonding Gel |
1 |
(
M )
Metric Mount
Accessories: |
Supplied |
M081B45 |
Accessory for Vibration Division Product |
1 |
Supplied |
M039A22 |
Allen wrench for use with M3 thread |
1 |
(
W )
Water Resistant Cable
Electrical Connection Position |
Side |
