Model : 352C03 | Accelerometer, ICP®

Click for lead times
Lead Time for 1-10 is 6 Wks
Lead Time for 11-20 is 7 Wks
$ 365.00 USD
(Pricing valid in US only!)

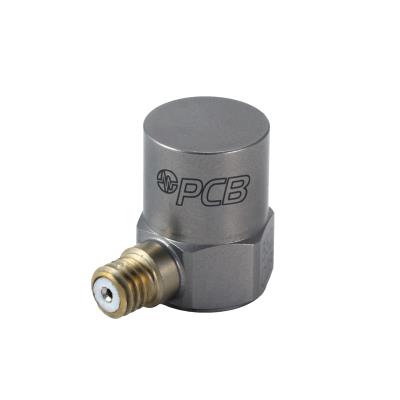

Platinum Stock Products; General purpose, ceramic shear ICP® accel., 10 mV/g, 0.5 to 10k Hz, 10-32 side conn.

  • Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))
  • Measurement Range: ±500 g pk (±4900 m/s² pk)
  • Broadband Resolution: 0.0005 g rms (0.005 m/s² rms)
  • Frequency Range: (±5%)0.5 to 10000 Hz
  • Sensing Element: Ceramic
  • Weight: 0.20 oz (5.8 gm)

RELATED PRODUCTS

002C10

General purpose coaxial cable, white FEP jacket, 10-ft, 10-32 plug to BNC plug



Add to Cart for Quote
Add To Cart
003C10

Low-noise coaxial cable, blue TFE jacket, 10-ft, 10-32 coaxial plug to BNC plug



Add to Cart for Quote
Add To Cart
485B39

2-channel, USB-powered, ICP® sensor signal conditioner with USB digital output (24-bit A/D)



Add to Cart for Quote
Add To Cart
English: SI:
Performance
Sensitivity (±10 %) 10 mV/g 1.02 mV/(m/s²)
Measurement Range ±500 g pk ±4900 m/s² pk
Frequency Range (±5 %) 0.5 to 10000 Hz 0.5 to 10000 Hz
Frequency Range (±10 %) 0.3 to 15000 Hz 0.3 to 15000 Hz
Resonant Frequency ≥50 kHz ≥50 kHz
Broadband Resolution (1) 0.0005 g rms 0.005 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±5000 g pk ±49000 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [2] [3]
Base Strain Sensitivity 0.003 g/µε 0.029 (m/s²)/µε [2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 1.0 to 2.5 sec 1.0 to 2.5 sec
Settling Time (within 10% of bias) <10 sec <10 sec
Spectral Noise (1 Hz) 110 µg/√Hz 1080 (µm/sec2)/√Hz
Spectral Noise (10 Hz) 25 µg/√Hz 245 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 8 µg/√Hz 78 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 4 µg/√Hz 39 (µm/sec2)/√Hz [2]
Physical
Weight 0.20 oz 5.8 gm [2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.62 in 15.7 mm
Size - Hex 0.44 in 11.2 mm
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 10-32 Female 10-32 Female
Mounting Torque 10 to 20 in-lb 113 to 226 N-cm
* All specifications are at room temperature unless otherwise specified
.


Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] 250° F to 325° F data valid with HT option only.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.


Accessories
Supplied
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
080A Adhesive mtg base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 1
M081B05 Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu 1


Optional Versions

( HT ) High temperature, extends normal operation temperatures
English SI
Frequency Range 5 to 10000
Frequency Range 3 to 15000
Temperature Range -65 to +325 -54 to +163
Discharge Time Constant 0.1 to 0.3
Spectral Noise 200 1962
Spectral Noise 30 294
Output Bias Voltage 10 to 15
Excitation Voltage 22 to 30 VDC


( J ) Ground Isolated
English SI
Frequency Range 14000 Hz
Frequency Range 9000 Hz
Resonant Frequency 40 kHz
Electrical Isolation >100000000 Ohm
Size - Hex 0.44 in 11.2 mm
Size - Height 0.67 in 17.0 mm
Weight 0.21 oz 6.0 gm


( T ) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4
English SI
Temperature Range -10 to +250 °F -23 to +121 °C
Output Bias Voltage 7.5 to 13 VDC
Excitation Voltage 20 to 30 VDC


( TLA ) TEDS LMS International - Free Format
English SI
Excitation Voltage 20 to 30 VDC
Output Bias Voltage 7.5 to 13 VDC
Temperature Range -10 to +250 °F -23 to +121 °C


( TLB ) TEDS LMS International - Automotive Format
English SI
Output Bias Voltage 7.5 to 13 VDC
Temperature Range -10 to +250 °F -23 to +121 °C
Excitation Voltage 20 to 30 VDC


( TLC ) TEDS LMS International - Aeronautical Format
English SI
Excitation Voltage 20 to 30 VDC
Output Bias Voltage 7.5 to 13 VDC
Temperature Range -10 to +250 °F -23 to +121 °C


( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4


( W ) Water Resistant Cable
English SI
Electrical Connection Position Side
