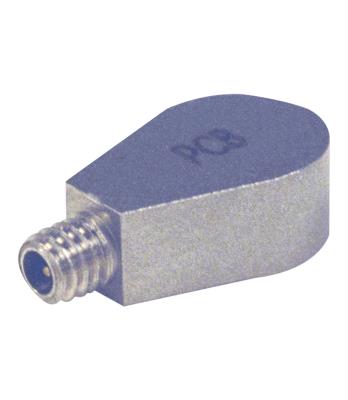

Model : 352A21 | Accelerometer, ICP®

Click for lead times
Lead Time for 1-10 is 6 Wks
Lead Time for 11-20 is 7 Wks
platinum stock products; miniature, lightweight (0.6 gm) ceramic shear icp® accel., 10 mv/g, 1 to 10k hz, titanium hsg, 10-ft detachable cable
$ 540.00 USD
(Pricing valid in US only!)

Platinum Stock Products; Miniature, lightweight (0.6 gm) ceramic shear ICP® accel., 10 mV/g, 1 to 10k Hz, titanium hsg, 10-ft detachable cable

  • Sensitivity: (±15%)10 mV/g ( 1.0 mV/(m/s²))
  • Measurement Range: ±500 g pk ( ±4900 m/s² pk)
  • Broadband Resolution: 0.004 g rms ( 0.04 m/s² rms)
  • Frequency Range: (±5%)1.0 to 10000 Hz
  • Sensing Element: Ceramic
  • Weight: 0.02 oz ( 0.6 gm)

RELATED PRODUCTS



352A21/NC
352A21/NC

Platinum Stock Products; Miniature, lightweight (0.6 gm) ceramic shear ICP® accel., 10 mV/g, 1 to 10k Hz, titanium hsg, no mating cable supplied



Add to Cart for Quote
Add to Cart
030A10
030A10

Miniature, low-noise, blue coaxial cable, 10-ft, 3-56 plug to 10-32 plug



Add to Cart for Quote
Add to Cart
030C10
030C10

Miniature, low-noise, blue coaxial cable, 10-ft, 3-56 plug to BNC plug



Add to Cart for Quote
Add to Cart
039A27
039A27

Removal tool (for Models 352A21, 352C22, 357A09 & 357C10 )



Add to Cart for Quote
Add to Cart
070A02
070A02

Scope input adaptor (10-32 jack to BNC plug)



Add to Cart for Quote
Add to Cart
080A194
080A194

Triaxial mounting adaptor, anodized aluminum (for teardrop accelerometers)



Add to Cart for Quote
Add to Cart
485B39
485B39

2-channel, USB-powered, ICP® sensor signal conditioner with USB digital output (24-bit A/D)



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±15 %) 10 mV/g 1.0 mV/(m/s²)
Measurement Range ±500 g pk ±4900 m/s² pk
Frequency Range (±5 %) 1.0 to 10000 Hz 1.0 to 10000 Hz
Frequency Range (±10 %) 0.7 to 13000 Hz 0.7 to 13000 Hz
Frequency Range (±3 dB) 0.3 to 20000 Hz 0.3 to 20000 Hz
Resonant Frequency ≥50 kHz ≥50 kHz
Broadband Resolution (1) 0.004 g rms 0.04 m/s² rms [ 2]
Non-Linearity ≤1 % ≤1 % [ 1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98000 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Temperature Response See Graph See Graph
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤300 Ohm ≤300 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 1.0 to 3.5 sec 1.0 to 3.5 sec
Settling Time <3 sec <3 sec
Spectral Noise (1 Hz) 800 µg/√Hz 7840 (µm/sec2)/√Hz [ 2]
Spectral Noise (10 Hz) 250 µg/√Hz 2450 (µm/sec2)/√Hz [ 2]
Spectral Noise (100 Hz) 60 µg/√Hz 590 (µm/sec2)/√Hz [ 2]
Spectral Noise (1 kHz) 50 µg/√Hz 490 (µm/sec2)/√Hz [ 2]
Spectral Noise (10 kHz) 40 µg/√Hz 392 (µm/sec2)/√Hz [ 2]
Physical
Size - Height 0.14 in 3.6 mm
Size - Length 0.45 in 11.4 mm
Size - Width 0.25 in 6.4 mm
Weight 0.02 oz 0.6 gm [ 2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Epoxy Epoxy
Electrical Connector 3-56 Coaxial Jack 3-56 Coaxial Jack
Electrical Connection Position Side Side
Mounting Adhesive Adhesive
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
030A10 Miniature, low-noise, blue coaxial cable, 10-ft, 3-56 plug to 10-32 plug 1
039A27 Removal tool (for Models 352A21, 352C22, 357A09 & 357C10 ) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1


Optional Versions


( HT ) High temperature, extends normal operation temperatures
English SI
Temperature Range -65 to 325 -54 to 163
