miniature, lightweight (0.6 gm), ceramic shear icp® accel., 10 mv/g, 0.5 to 4.5k hz, titanium housing, built-in 15 khz lp filter, 10-ft flexible, integral cable

ICP® Accelerometer

Model 352A72

  • CE
  • IP

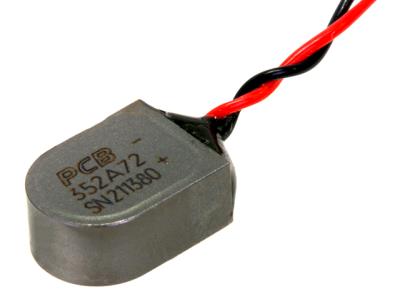

Miniature, lightweight (0.6 gm), ceramic shear ICP® accel., 10 mV/g, 0.5 to 4.5k Hz, titanium housing, built-in 15 kHz LP filter, 10-ft flexible, integral cable

  • Sensitivity: (±15%)10 mV/g (1.02 mV/(m/s²))
  • Measurement Range: ±500 g pk (±4900 m/s² pk)
  • Broadband Resolution: 0.003 g rms (0.03 m/s² rms)
  • Frequency Range: (±5%)0.5 to 4500 Hz
  • Sensing Element: Ceramic
  • Weight: 0.023 oz (0.64 gm)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Cable is made up of 1 ft. of 089 cable (32 AWG twisted pair) spliced to 9 ft. of 018 cable (coaxial).
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±15 %) 10 mV/g 1.02 mV/(m/s²)
Measurement Range ±500 g pk ±4900 m/s² pk
Frequency Range (±5 %) 0.5 to 4500 Hz 0.5 to 4500 Hz
Electrical Filter Corner Frequency 15000 Hz 15000 Hz [2]
Electrical Filter Roll-off 6 dB/octave 6 dB/octave [2]
Resonant Frequency ≥65 kHz ≥65 kHz
Broadband Resolution (1) 0.003 g rms 0.03 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98000 m/s² pk
Temperature Range (Operating) -65 to +200 °F -54 to +93 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 1.0 to 3.5 sec 1.0 to 3.5 sec
Settling Time (within 10% of bias) ≤3 sec ≤3 sec
Spectral Noise (1 Hz) 725 µg/√Hz 7110 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 225 µg/√Hz 2210 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 100 µg/√Hz 981 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 100 µg/√Hz 981 (µm/sec2)/√Hz [2]
Physical
Size - Height 0.14 in 3.6 mm
Size - Length 0.41 in 10.4 mm
Size - Width 0.25 in 6.4 mm
Weight (without cable) 0.023 oz 0.64 gm [2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Electrical Connector Solder pins with attached cable Solder pins with attached cable
Electrical Connection Position Side Side
Cable Termination 10-32 Coaxial Plug 10-32 Coaxial Plug
Cable Length 10 ft 3.05 m [3]
Mounting Adhesive Adhesive

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories


Supplied
039A32 Removal tool (for Model 352A71, 352A72) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
