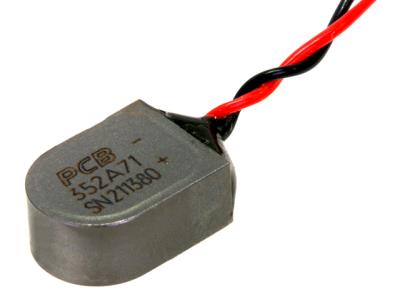

Model : 352A71 | ICP® Accelerometer

Click for lead times
Lead Time for 1-10 is 5 Wks
Lead Time for 11-20 is 6 Wks
$ 540.00 USD
(Pricing valid in US only!)

Miniature, lightweight (0.64 gm), ceramic shear ICP® accel., 10 mV/g, 0.5 to 10k Hz, titanium housing, 10-ft flexible, integral cable

  • Sensitivity: (±15%)10 mV/g (1.02 mV/(m/s²))
  • Measurement Range: ±500 g pk (±4900 m/s² pk)
  • Broadband Resolution: 0.003 g rms (0.03 m/s² rms)
  • Frequency Range: (±5%)0.5 to 10000 Hz
  • Sensing Element: Ceramic
  • Weight: 0.023 oz (0.64 gm)
Additional Configurations:

RELATED PRODUCTS



352A72

Miniature, lightweight (0.6 gm), ceramic shear ICP® accel., 10 mV/g, 0.5 to 4.5k Hz, titanium housing, built-in 15 kHz LP filter, 10-ft flexible, integral cable



Add to Cart for Quote
Add To Quote
039a32

Removal tool (for Model 352A71)



Add to Cart for Quote
Add To Cart
070A02

Scope input adaptor (10-32 jack to BNC plug)



Add to Cart for Quote
Add To Cart
080A194

Triaxial mounting adaptor, anodized aluminum (for teardrop accelerometers)



Add to Cart for Quote
Add To Quote
English: SI:
Performance
Sensitivity (±15 %) 10 mV/g 1.02 mV/(m/s²)
Measurement Range ±500 g pk ±4900 m/s² pk
Frequency Range (±5 %) 0.5 to 10000 Hz 0.5 to 10000 Hz
Frequency Range (±10 %) 0.35 to 16000 Hz 0.35 to 16000 Hz
Frequency Range (±3 dB) 0.2 to 25000 Hz 0.2 to 25000 Hz
Resonant Frequency ≥65 kHz ≥65 kHz
Broadband Resolution (1) 0.003 g rms 0.03 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98000 m/s² pk
Temperature Range (Operating) -65 to +200 °F -54 to +93 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 1.0 to 3.5 sec 1.0 to 3.5 sec
Settling Time (within 10% of bias) ≤3 sec ≤3 sec
Spectral Noise 725 µg/√Hz 7110 [2]
Spectral Noise (10 Hz) 225 µg/√Hz 2210 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 60 µg/√Hz 590 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 20 µg/√Hz 196 (µm/sec2)/√Hz [2]
Physical
Size - Height .14 in 3.6 mm
Weight (without cable) 0.023 oz 0.64 gm [2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Length 0.41 in 10.4 mm
Size - Width 0.25 in 6.4 mm
Electrical Connector Solder pins with attached cable Solder pins with attached cable
Electrical Connection Position Side Side
Cable Termination 10-32 Coaxial Plug 10-32 Coaxial Plug
Cable Length 10 ft 3.05 m [3]
Mounting Adhesive Adhesive
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Cable is made up of 1 ft. of 089 cable (32 AWG twisted pair) spliced to 9 ft. of 018 cable (coaxial).
[4] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
039A32 Removal tool (for Model 352A71) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
