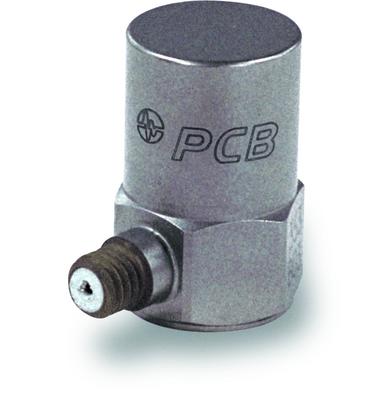

Cryogenic, quartz shear ICP® accel., 10 mV/g, 1 to 6k Hz, 10-32 side conn. (-320 to +250F/-196 to +121C)
- Sensitivity: (±10%)10 mV/g
(1.02 mV/(m/s²))
- Measurement Range: ±150 g pk
(±1472 m/s² pk)
- Broadband Resolution: 0.01 g rms
(0.1 m/s² rms)
- Frequency Range: (±5%)1 to 6000 Hz
- Sensing Element: Quartz
- Weight: 0.33 oz
(9.4 gm)
|
English: |
SI: |
|
Performance |
Sensitivity (±10 %) |
10 mV/g |
1.02 mV/(m/s²) |
|
Measurement Range |
±150 g pk |
±1472 m/s² pk |
|
Frequency Range (±5 %) |
1 to 6000 Hz |
1 to 6000 Hz |
|
Frequency Range (±10 %) |
0.7 to 9000 Hz |
0.7 to 9000 Hz |
|
Frequency Range (±3 dB) |
0.35 to 15000 Hz |
0.35 to 15000 Hz |
|
Resonant Frequency |
≥35 kHz |
≥35 kHz |
|
Broadband Resolution |
0.01 g rms |
0.1 m/s² rms |
[2]
|
Non-Linearity |
1 % |
1 % |
[1]
|
Transverse Sensitivity |
≤5 % |
≤5 % |
[3]
|
Environmental |
Overload Limit |
±5000 g pk |
±49050 m/s² pk |
|
Temperature Range |
-320 to +250 °F |
-196 to +121 °C |
|
Temperature Response |
See Graph %/°F |
See Graph %/°F |
[2]
|
Base Strain Sensitivity |
<0.0005 g/µε |
<0.005 (m/s²)/µε |
[2]
|
Electrical |
Excitation Voltage |
20 to 30 VDC |
20 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤200 Ohm |
≤200 Ohm |
|
Output Bias Voltage |
3 to 10 VDC |
3 to 10 VDC |
|
Discharge Time Constant |
>0.5 sec |
>0.5 sec |
|
Spectral Noise (10 Hz) |
220 µg/√Hz |
2156 (µm/sec2)/√Hz |
[2]
|
Spectral Noise (100 Hz) |
62 µg/√Hz |
607 (µm/sec2)/√Hz |
[2]
|
Spectral Noise (1 kHz) |
16 µg/√Hz |
156 (µm/sec2)/√Hz |
[2]
|
Physical |
Weight |
0.33 oz |
9.4 gm |
[2]
|
Sensing Element |
Quartz |
Quartz |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Welded Hermetic |
Welded Hermetic |
|
Electrical Connector |
10-32 Coaxial Jack |
10-32 Coaxial Jack |
|
Electrical Connection Position |
Side |
Side |
|
Mounting Thread |
10-32 Female |
10-32 Female |
|
* All specifications are at room temperature unless otherwise specified
.


Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically <= 3%.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.
Accessories
|
|
|
Supplied |
081B05 |
Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder (for series 3713) |
1 |
ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
M081B05 |
Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu (for series 3713) |
1 |
Optional Versions
( J ) Ground Isolated
Frequency Range |
5 kHz |
Frequency Range |
8 Hz |
Resonant Frequency |
22 kHz |
Electrical Isolation |
>100000000 Ohm |
Size - Hex |
0.50 in |
12.7 mm |
Size - Height |
0.86 in |
21.8 mm |
