Model : 3501A2060KG | HIGH AMPLITUDE MEMS SHOCK Accelerometer

Click for lead times
Lead Time for 1-5 is 3 Wks
Lead Time for 0-0 is 0 Wks
Add to Cart for Quote

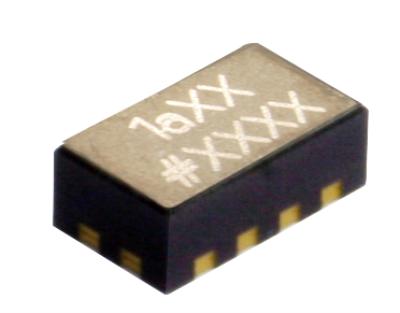

Shock accelerometer, 60 kg, MEMS sensor installed in chip carrier (SMT)

  • Sensitivity: (±50%).003 mV/g (.0003 mV/(m/s²))
  • Measurement Range: ±60000 g (±588400 m/s² pk)
  • Frequency Range: (1dB)0 to 20000 Hz
  • Sensing Geometry: Full Active
  • Mounting: Surface Mount
  • Weight: 0.005 oz (0.15 gm)
English: SI:
Performance
Sensitivity (±50 %) (at 10 VDC excitation) .003 mV/g .0003 mV/(m/s²) [2]
Sensitivity 0.0003 mV/V/g 0.00003 mV/V/(m/s²) [3]
Measurement Range ±60000 g ±588400 m/s² pk
Frequency Range (1 dB) 0 to 20000 Hz 0 to 20000 Hz
Resonant Frequency >120 kHz >120 kHz
Damping Ratio 2 % Critical 2 % Critical [1]
Non-Linearity (per 10,000 g (98,100 m/s²)) ±1 % ±1 %
Transverse Sensitivity ≤3 % ≤3 %
Environmental
Overload Limit (Shock) ±100000 g pk ±980665 m/s² pk [5]
Overload Limit (Mechanical Stops) ≥80000 g ≥782534 m/s² pk
Temperature Range (Operating) -65 to 250 °F -54 to 121 °C
Temperature Coefficient of Sensitivity -0.11 %/°F -0.20 %/°C [1]
Zero g Offset Temperature Shift ±10 mV ±10 mV [4]
Base Strain Sensitivity 0.3 g/µε 2.94 (m/s²)/µε [1]
Electrical
Excitation Voltage (Maximum) 15.0 VDC 15.0 VDC
Current Consumption <3 mA <3 mA
Input Resistance (±2000 Ohm) 6000 Ohm 6000 Ohm [2]
Output Resistance (±2000 Ohm) 6000 Ohm 6000 Ohm [2]
Offset Voltage -40 to +40 mVDC -40 to +40 mVDC [2]
Settling Time 0.01 sec 0.01 sec [6]
Physical
Sensing Element Piezoresistive MEMS Piezoresistive MEMS
Sensing Geometry Full Active Full Active
Housing Material Ceramic Ceramic
Sealing Epoxy Epoxy
Size - Height 0.085 in 2.16 mm
Size - Length 0.236 in 6.00 mm
Size - Width 0.138 in 3.50 mm
Weight 0.005 oz 0.15 gm [1]
Electrical Connector Solder Tabs Solder Tabs
Mounting Surface Mount Surface Mount
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Typical.
[2] Verified with test data provided on supplied calibration certificate.
[3] Sensitivity is proportional to excitation voltage, and at other excitation values, sensitivity can be predicted from the 10VDC calibrated value with a small (<~.5%) increase in uncertainty.
[1] Typical.
[4] -65 to +250 °F, ref. 75 °F (-54 to +121 °C, ref. 24 °C)
[5] Half-sine pulse duration, >= 20 µsec.
[6] Settling Time is the maximum time after power-up for the Offset Voltage to be within +/-2% of Measurement Range output of the final offset value. Mounting surface must be at thermal equilibrium.
[2] Verified with test data provided on supplied calibration certificate.
[1] Typical.
[7] See PCB Declaration of Conformance PS151 for details.


Accessories


Supplied
ACS-62 Calibration of High G PR Accelerometer, 10.0 VDC excitation 1
