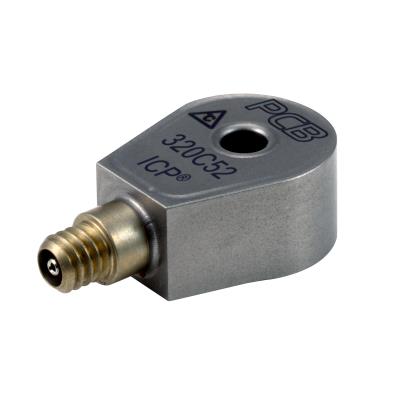

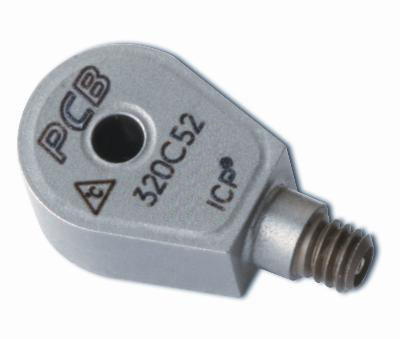

Model : 320C52 | ICP® Accelerometer

Click for lead times
Lead Time for 1-5 is 6 Wks
Lead Time for 6-10 is 7 Wks
uht-12™, icp® accel., miniature (2 gm), ring-style, low temperature coefficient ltc , 10 mv/g, 1 to 10k hz, 5-44 side connector
$ 790.00 USD
(Pricing valid in US only!)

UHT-12™, ICP® accel., miniature (2 gm), ring-style, low temperature coefficient LTC , 10 mV/g, 1 to 10k Hz, 5-44 side connector

  • Electrical Filter Corner Frequency: >35 kHz

  • Sensitivity: (±10%)10 mV/g ( 1.02 mV/(m/s²))
  • Measurement Range: ±500 g pk ( ±4905 m/s² pk)
  • Broadband Resolution: .004 g rms ( .039 m/s² rms)
  • Frequency Range: (±5%)1 to 10000 Hz
  • Sensing Element: UHT-12™
  • Weight: .065 oz ( 1.85 gm)

RELATED PRODUCTS



002P10
002P10

General purpose coaxial cable, white FEP jacket, 10-ft, 5-44 plug to BNC plug



Add to Cart for Quote
Add to Cart
003P10
003P10

Low-noise coaxial cable, blue TFE jacket, 10-ft, micro 5-44 plug to BNC plug



Add to Cart for Quote
Add to Cart
018C10
018C10

Miniature, lightweight, black coaxial cable, vinyl insulation jacket, 10-ft, 5-44 plug to BNC plug



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±10 %) 10 mV/g 1.02 mV/(m/s²)
Measurement Range ±500 g pk ±4905 m/s² pk
Frequency Range (±5 %) 1 to 10000 Hz 1 to 10000 Hz
Frequency Range (±10 %) 0.6 to 15000 Hz 0.6 to 15000 Hz [ 4]
Frequency Range (±3 dB) 0.3 to 25000 Hz 0.3 to 25000 Hz [ 4]
Resonant Frequency ≥50 kHz ≥50 kHz
Broadband Resolution (1) .004 g rms .039 m/s² rms [ 2]
Non-Linearity ≤1 % ≤1 % [ 1]
Transverse Sensitivity ≤5 % ≤5 % [ 3]
Environmental
Overload Limit ±5000 g pk ±49000 m/s² pk
Temperature Range (Operating) -100 to 325 °F -73 to 163 °C
Temperature Coefficient of Sensitivity ≤0.005 %/°F ≤0.009 %/°C
Temperature Response See Graph %/°F See Graph %/°F [ 2]
Base Strain Sensitivity ≤.02 g/µε ≤.196 (m/s²)/µε [ 2]
Electrical
Excitation Voltage 19 to 30 VDC 19 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant .4 to 2.2 sec .4 to 2.2 sec
Settling Time (within 10% of bias) ≤2 sec ≤2 sec
Spectral Noise (1 Hz) 750 µg/√Hz 7350 (µm/sec2)/√Hz [ 2]
Spectral Noise (10 Hz) 150 µg/√Hz 1470 (µm/sec2)/√Hz [ 2]
Spectral Noise (100 Hz) 50 µg/√Hz 490 (µm/sec2)/√Hz [ 2]
Spectral Noise (1 kHz) 25 µg/√Hz 245 (µm/sec2)/√Hz [ 2]
Electrical Isolation (Base) ≥100000000 Ohm ≥100000000 Ohm [ 5] [ 4]
Physical
Size - Height 0.23 in 5.84 mm
Size - Length 0.68 in 17.3 mm
Size - Width 0.38 in 9.6 mm
Weight .065 oz 1.85 gm [ 2]
Sensing Element UHT-12™ UHT-12™
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 5-44 Coaxial 5-44 Coaxial
Electrical Connection Position Side Side
Mounting Through Hole Through Hole
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] Transverse sensitivity is typically ≤ 3%.
[ 4] When used with off ground washer, high frequency specification is typically 2 kHz less on 10% and 3 dB points.
[ 2] Typical.
[ 5] Only when using off ground washer.
[ 4] When used with off ground washer, high frequency specification is typically 2 kHz less on 10% and 3 dB points.
[ 2] Typical.
[ 6] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
039A20 Allen wrench (for use with 2-56 thd cap screws) 1
081B36 Off ground socket head cap screw assembly, 2-56 UNC-2A thd., 0.375 length, alloy steel 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1


Optional Versions


( M ) Metric Mount
Accessories:
Supplied M039A20 Allen wrench, 1.5mm hex 1
Supplied M081B36 INS CAP SCREW M2X0.4 X 3/8 1
