triax force link, icp®, 1000 lb (fx,y,z), 2.5 mv/lb (z), 5 mv/lb (x,y), ground isolated

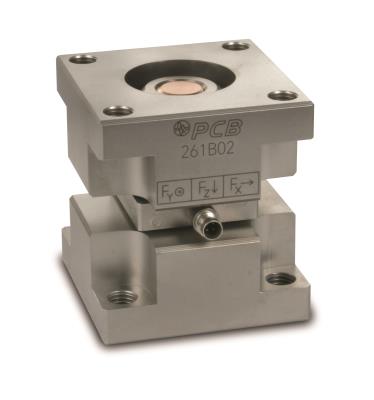

3-Component ICP® Force Sensor

Model 261B02

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
2 Call for Lead Time
  • CE
  • IP

Triax force link, ICP®, 1000 lb (Fx,y,z), 2.5 mV/lb (z), 5 mV/lb (x,y), ground isolated

WPL 88 - Improved Stiffness Specifications for Piezoelectric Force Links
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Electrical Connector: 4-Pin

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB White Paper WPL_88_1121 for details.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±20 %) (Z Axis) 2.5 mV/lb 0.56 mV/N
Sensitivity (±20 %) (X or Y Axis) 5 mV/lb 1.12 mV/N
Measurement Range (Z Axis) 1000 lb 4.45 kN
Measurement Range (X or Y Axis) 1000 lb 4.45 kN
Maximum Force (Z Axis) 1320 lb 5.87 kN
Maximum Force (X or Y Axis) 1,100 lb 4.89 kN
Maximum Moment (Z Axis) 40 ft-lb 54.2 Nm
Maximum Moment (X or Y Axis) 70 ft-lb 94.9 Nm
Broadband Resolution (Z Axis) 0.005 lb-rms 0.0222 N-rms [2]
Broadband Resolution (X or Y Axis) 0.003 lb-rms 0.0133 N-rms [2]
Low Frequency Response (-5 %) (Z-Axis) 0.01 Hz 0.01 Hz
Low Frequency Response (-5 %) (X or Y Axis) 0.001 Hz 0.001 Hz
Non-Linearity ≤1 % FS ≤1 % FS [1]
Cross Talk (between X and Y Axis) ±3 % ±3 %
Cross Talk (between (X or Y Axis) and Z Axis) ±5 % ±5 %
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Electrical
Full Scale Output (Z Direction) ±2.5 VDC ±2.5 VDC
Full Scale Output (X and Y Direction) ±5 VDC ±5 VDC
Discharge Time Constant (Z Axis) ≥50 sec ≥50 sec
Discharge Time Constant (X or Y Axis) ≥500 sec ≥500 sec
Excitation Voltage (all channels) 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation (all channels) 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Spectral Noise (1 ) (X & Y) 0.001 lb/√Hz .0044 N√Hz
Spectral Noise (10 ) 0.0003 lb/√Hz 0.00133 N√Hz
Spectral Noise (100 ) 0.00008 lb/√Hz 0.000356 N√Hz
Spectral Noise (1000 ) 0.00002 lb/√Hz 0.000089 N√Hz
Spectral Noise (1 ) (Z) 0.002 lb/√Hz 0.0089 N√Hz
Spectral Noise (10 ) 0.0005 lb/√Hz 0.00222 N√Hz
Spectral Noise (100 ) 0.0002 lb/√Hz 0.00089 N√Hz
Spectral Noise (1000 ) 0.00005 lb/√Hz 0.000222 N√Hz
Output Polarity Positive Positive
Electrical Isolation ≥100000000 Ohm ≥100000000 Ohm
Physical
Stiffness (X or Y Axis) 2.9 lb/µin 510 N/µm [2]
Stiffness (Z Axis) 7.2 lb/µin 1260 N/µm [2]
Stiffness (RX or RY Axis) 2.8 E6 lbf*in/radian 3.2E5 N*m/radian [2] [3]
Stiffness (RZ Axis) 9.4 E5 lbf*in/radian 1.1E5 N*m/radian [2] [3]
Coupled Stiffness (X or Y Axis) 2.5 lbf*in/µin 11 N*m/µm [2] [3]
Weight 34.40 oz 975 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 4-Pin 4-Pin
Electrical Connection Position Side Side

* All specifications are at room temperature unless otherwise specified.

Optional Versions


(W) Water Resistant Cable

English SI
Electrical Connection Position Side
