triax force sensor, icp®, 25 lb (fz), 10 lb (fx,y), 100 mv/lb (fz), 500 mv/lb (fx,y), ground isolated

ICP TRIAX FORCE SENSOR

Model 260M21A

Add to Quote
  • CE
  • IP

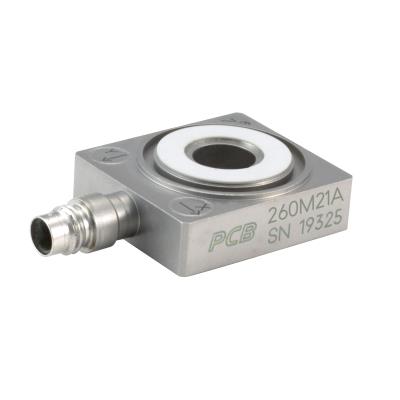

Triax force sensor, ICP®, 25 lb (Fz), 10 lb (Fx,y), 100 mV/lb (Fz), 500 mV/lb (Fx,y), ground isolated

***The preload procedure found in the manual must be followed to prevent damage***

    Specification Notes

    [1] Zero-based, least-squares, straight line method.
    [2] Typical.
    [3] Sensitivites are for listed preload. Sensitivites may vary ±5% depending on preload used.
    [4] Sensitivities are dependent upon supplied bolt.
    [2] Typical.
    [5] Preload should be at least 10 times the X and Y operating range used.
    [6] Apply thin layer of lithium grease to sliding surfaces (washer, nut, threads).
    [7] See PCB White Paper WPL_88_1121 for details.
    [8] Perform in steps of 14 in-lbs (158 N cm) to protect electronics (40 V max)
    [9] See PCB Declaration of Conformance PS023 for details.

    English: SI:
    Performance
    Sensitivity (±30 %) (Z Axis) 100 mV/lb 22.5 mV/N [3] [4]
    Sensitivity (±30 %) (X or Y Axis) 500 mV/lb 112 mV/N [3] [4]
    Measurement Range (Z Axis) 25 lb .111 kN
    Measurement Range (X or Y Axis) 10 lb .044 kN
    Maximum Force (Z Axis) 300 lb 1.334 kN
    Maximum Force (X or Y Axis) 60 lb .267 kN
    Maximum Moment (Z Axis) 6 ft-lb 8.1 Nm
    Maximum Moment (X or Y Axis) 9 ft-lb 12.2 Nm
    Broadband Resolution (Z Axis) 0.0003 lb-rms 0.0013 N-rms [2]
    Broadband Resolution (X or Y Axis) 0.00004 lb-rms 0.0002 N-rms [2]
    Low Frequency Response (-5 %) (Z-Axis) 0.01 Hz 0.01 Hz
    Low Frequency Response (-5 %) (X or Y Axis) 0.01 Hz 0.01 Hz
    Non-Linearity ≤1 % FS ≤1 % FS [1]
    Cross Talk (between X and Y Axis) ±3 % ±3 %
    Cross Talk (between (X or Y Axis) and Z Axis) ±5 % ±5 %
    Environmental
    Temperature Range -65 to +250 °F -54 to +121 °C
    Electrical
    Full Scale Output (Z Direction) ±2.5 VDC ±2.5 VDC
    Full Scale Output (X and Y Direction) ±5 VDC ±5 VDC
    Discharge Time Constant (Z Axis) ≥50 sec ≥50 sec
    Discharge Time Constant (X or Y Axis) ≥50 sec ≥50 sec
    Excitation Voltage (all channels) 20 to 30 VDC 20 to 30 VDC
    Constant Current Excitation (all channels) 2 to 20 mA 2 to 20 mA
    Output Impedance ≤100 Ohm ≤100 Ohm
    Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
    Output Polarity Positive Positive
    Electrical Isolation ≥100000000 Ohm ≥100000000 Ohm
    Physical
    Preload Torque 56 in-lb 6.3 Nm [5] [6] [8]
    Stiffness (X or Y Axis) 2.5 lb/µin 440 N/µm [2] [7]
    Stiffness (Z Axis) 10.0 lb/µin 1755 N/µm [2] [7]
    Stiffness (RX or RY Axis) 4.1E5 lbf*in/radian 4.6E4 N*m/radian [2] [7]
    Stiffness (RZ Axis) 4.7E5 lbf*in/radian 5.3E4 N*m/radian [2] [7]
    Coupled Stiffness 0.3 lbf*in/µin 1.3 N*m/µm [2] [7]
    Weight 0.937 oz 26.57 gm
    Housing Material Stainless Steel Stainless Steel
    Sealing Hermetic Hermetic
    Electrical Connector 4-Pin 4-Pin
    Electrical Connection Position Side Side

    * All specifications are at room temperature unless otherwise specified.

    Accessories
    Supplied
    081A70 Pre-load bolt (for Models 260A01, 260A11, & 260A31) 1
    082B02 Anti-friction washer for Models (M)202B, (M)212B, 260A01, 260A11, 260A31, 260B01, 260B11 & 260B31 1
    083A10 Pilot bushing for Models 260A01, 260A11, 260A31, 260B01, 260B11 & 260B31 1
    M081A70 BeCu pre-load bolt, M8x1.25 to M8x1.25, 1.420 inch for Models 260B01, 260B11, 260B31, 260A01, 260A11 & 260A31 1

    Optional Versions

    (W) Water Resistant Cable

    English SI
    Electrical Connection Position Side

    Build Out Your Measurement Chain
