Name: Model 260B13
Brand: PCB
SKU: 260B13
Availability: InStock

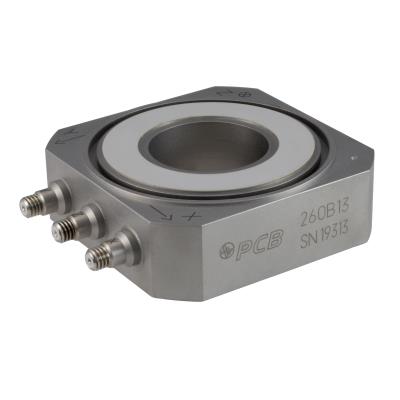

triax force sensor, charge, 10k lb (fz), 4k lb (fx,y), 15 pc/lb (fz), 32 pc/lb (fx,y), ground isolated

CHARGE TRIAX FORCE SENSOR

Model 260B13

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart

Units in Stock	Lead Times
More on the way	Call for Lead Time

Triax force sensor, charge, 10k lb (Fz), 4k lb (Fx,y), 15 pC/lb (Fz), 32 pC/lb (Fx,y), ground isolated

Longer Imperial BeCu Bolt: 081M181
Stainless Steel Nut: 28782-01
Stainless Steel Washer: 28783-01

Temperature Range: -100 to +350 °F (-73 to +177 °C)
Electrical Connector: 10-32 Coaxial Jack

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Sensitivities are dependent upon supplied bolt.
[3] Typical.
[4] Preload should be at least 10 times the X and Y operating range used.
[5] See PCB White Paper WPL_88_1121 for details.
[6] See PCB Declaration of Conformance PS158 for details.

	English:	SI:
Performance
Sensitivity (±15 %) (Z Axis)	15 pC/lb	3.37 pC/N	[2]
Sensitivity (±15 %) (X or Y Axis)	32 pC/lb	7.19 pC/N	[2]
Measurement Range (Z Axis)	10000 lb	44.48 kN
Measurement Range (X or Y Axis)	4000 lb	17.7 kN
Maximum Force (Z Axis)	11000 lb	48.93 kN
Maximum Force (X or Y Axis)	4400 lb	19.57 kN
Maximum Moment (Z Axis)	375 ft-lb	508.4 Nm
Maximum Moment (X or Y Axis)	940 ft-lb	1274.5 Nm
Non-Linearity	≤1 % FS	≤1 % FS	[1]
Cross Talk (between X and Y Axis)	±3 %	±3 %
Cross Talk (between (X or Y Axis) and Z Axis)	±5 %	±5 %
Environmental
Temperature Range	-100 to +350 °F	-73 to +177 °C
Electrical
Capacitance (all channels)	70 pF	70 pF	[3]
Insulation Resistance (all channels)	≥1000000000000 Ohm	≥1000000000000 Ohm
Output Polarity (in direction of markings)	Negative	Negative
Electrical Isolation	≥100000000 Ohm	≥100000000 Ohm
Physical
Preload	≤40000 lb	≤178 kN	[4]
Stiffness (X or Y Axis)	6.9 lb/µin	1215 N/µm	[3] [5]
Stiffness (Z Axis)	37.9 lb/µin	6645 N/µm	[3] [5]
Stiffness (RX or RY Axis)	1.1E7 lbf*in/radian	1.3E6 N*m/radian	[3] [5]
Stiffness (Z Axis)	1.2E7 lbf*in/radian	1.4E6 N-m/radian	[3] [5]
Coupled Stiffness (X-RY or Y-RX Axis)	0.6 lbf*in/µin	2.7 N*m/µm	[3] [5]
Weight	9.88 oz	280 gm
Housing Material	Stainless Steel	Stainless Steel
Sealing	Hermetic	Hermetic
Electrical Connector (Quantity, 3)	10-32 Coaxial Jack	10-32 Coaxial Jack
Electrical Connection Position	Side	Side

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
081A71	BeCu pre-load bolt, 7/8-14 to 7/8-14, 2.400 inch for Models 260B03, 260B13, 260B33, 260A03, 260A13 & 260A33	1
082B06	Anti-friction washer for Models (M)206C, (M)216B, 260A03, 260A13, 260A33, 260B03, 260B13 & 260B33	1
083A11	Pilot bushing for Models 260A03, 260A13, 260A33, 260B03, 260B13 & 260B33	1
M081A71	BeCu pre-load bolt, M24x3 to M24x3, 2.400 inch for Models 260B03, 260B13, 260B33, 260A03, 260A13 & 260A33	1
