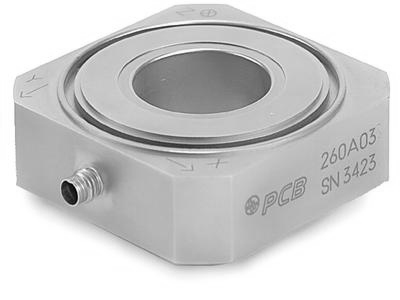

Triax ICP® force sensor, 10k lb (Fz), 4000 lb (Fx,y), 0.25 mV/lb (z), 1.25 mV/lb (x, y)
- Temperature Range: -65 to +250 °F
(-54 to +121 °C)
- Electrical Connector: 4-Pin
RELATED PRODUCTS
|
English: |
SI: |
|
| Performance |
| Sensitivity (±20 %) (Z Axis) |
0.25 mV/lb |
0.06 mV/N |
[3]
[4]
|
| Sensitivity (±20 %) (X or Y Axis) |
1.25 mV/lb |
0.28 mV/N |
[3]
[4]
|
| Measurement Range (Z Axis) |
10000 lb |
44.48 kN |
|
| Measurement Range (X or Y Axis) |
4000 lb |
17.79 kN |
|
| Maximum Force (z axis) |
11000 lb |
48.93 kN |
|
| Maximum Force (x or y axis) |
4400 lb |
19.57 kN |
|
| Maximum Moment (z axis) |
240 ft-lb |
325.4 Nm |
|
| Maximum Moment (x or y axis) |
325 ft-lb |
440.7 Nm |
|
| Broadband Resolution (z axis) |
0.05 lb-rms |
0.222 N-rms |
[2]
|
| Broadband Resolution (x or y axis) |
0.01 lb-rms |
0.04 N-rms |
[2]
|
| Upper Frequency Limit |
39000 Hz |
39000 Hz |
|
| Low Frequency Response (-5 %) (z-axis) |
0.01 Hz |
0.01 Hz |
|
| Low Frequency Response (-5 %) (x or y axis) |
0.001 Hz |
0.001 Hz |
|
| Non-Linearity |
≤1 % FS |
≤1 % FS |
[1]
|
| Cross Talk (between x and y axis) |
±3 % |
±3 % |
|
| Cross Talk (between (x or y axis) and z axis) |
±5 % |
±5 % |
|
| Environmental |
| Temperature Range |
-65 to +250 °F |
-54 to +121 °C |
|
| Electrical |
| Full Scale Output (Z Direction) |
±2.5 VDC |
±2.5 VDC |
|
| Full Scale Output (X and Y Direction) |
±5 VDC |
±5 VDC |
|
| Discharge Time Constant (z axis) |
≥50 sec |
≥50 sec |
|
| Discharge Time Constant (x or y axis) |
≥500 sec |
≥500 sec |
|
| Excitation Voltage (all channels) |
20 to 30 VDC |
20 to 30 VDC |
|
| Constant Current Excitation (all channels) |
2 to 20 mA |
2 to 20 mA |
|
| Output Impedance |
≤100 Ohm |
≤100 Ohm |
|
| Output Bias Voltage |
8 to 14 VDC |
8 to 14 VDC |
|
| Spectral Noise (1 Hz) (X & Y) |
0.003 lb/√Hz |
0.0134 N/√Hz |
|
| Spectral Noise (10 Hz) (X & Y) |
0.001 lb/√Hz |
0.00445 N/√Hz |
|
| Spectral Noise (100 Hz) (X & Y) |
0.0004 lb/√Hz |
0.00178 N/√Hz |
|
| Spectral Noise (1000 Hz) (X & Y) |
0.0001 lb/√Hz |
0.000445 N/√Hz |
|
| Spectral Noise (1 Hz) (Z) |
0.02 lb/√Hz |
0.089 N/√Hz |
|
| Spectral Noise (10 Hz) (Z) |
0.005 lb/√Hz |
0.0222 N/√Hz |
|
| Spectral Noise (100 Hz) (Z) |
0.002 lb/√Hz |
0.0089 N/√Hz |
|
| Spectral Noise (1000 Hz) (Z) |
0.0005 lb/√Hz |
0.00222 N/√Hz |
|
| Output Polarity |
Positive |
Positive |
|
| Physical |
| Preload |
40000 lb |
178 kN |
[5]
|
| Stiffness (z axis) |
38.8 lb/µin |
6.8 kN/µm |
[2]
|
| Stiffness (x or y axis) |
11.4 lb/µin |
2.0 kN/µm |
[2]
|
| Size - Height |
0.790 in |
20.07 mm |
|
| Size - Length |
2.25 in |
57.1 mm |
|
| Size - Width |
2.25 in |
57.1 mm |
|
| Size - Bolt Diameter |
1 in |
25 mm |
|
| Size - ID |
1.023 in |
25.98 mm |
|
| Size - Sensing Surface |
1.800 in |
45.72 mm |
|
| Weight |
9.56 oz |
271 gm |
|
| Housing Material |
Stainless Steel |
Stainless Steel |
|
| Sealing |
Hermetic |
Hermetic |
|
| Electrical Connector |
4-Pin |
4-Pin |
|
| Electrical Connection Position |
Side |
Side |
|
* All specifications are at room temperature unless otherwise specified
.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Sensitivites are for listed preload. Sensitivites may vary ±5% depending on preload used.
[4] Sensitivities are dependent upon supplied bolt.
[2] Typical.
[5] Preload should be at least 10 times the X and Y operating range used.
[6] See PCB Declaration of Conformance PS023 for details.
Accessories
|
|
|
| Supplied |
| 081A71 |
Pre-load bolt (for Models 260A03, 260A13, & 260A33) |
1 |
| 082B06 |
Anti-friction washer (for Models 206C, 216B, 260A03, 260A13, & 260A33) |
1 |
| 083A11 |
Pilot bushing (for Models 260A03, 260A13, & 260A33) |
1 |
| M081A71 |
Mounting stud, BeCu, M24 x 3-6g, (for Models M260A03, A13, and A33) |
1 |
Optional Versions
( W ) Water Resistant Cable
| Electrical Connection Position |
Side |
