Model: 224C

Add to Cart for Quote

Call for lead time

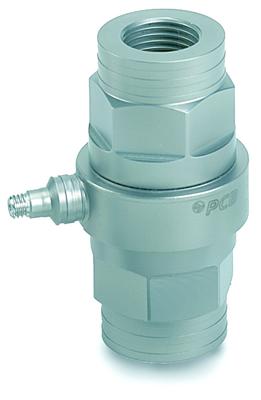

Link ICP® quartz force sensor, 25k lb comp., 8k lb tension, 0.2 mV/lb

  • Measurement Range: 25000 lb (111.2 kN)
  • Sensitivity: (±15%) 0.20 mV/lb (44.96 mV/kN)
  • Low Frequency Response: (-5%) 0.0003 Hz
  • Upper Frequency Limit: 8000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Mounting Thread: 5/8 - 18 Female

Add this product to my product comparison
Compare selected models ()

Sensitivity (±15 %)0.20 mV/lb44.96 mV/kN
Measurement Range (Compression)25000 lb111.2 kN
Measurement Range (Tension)8000 lb35.59 kN
Maximum Static Force (Compression)29000 lb129.00 kN
Maximum Static Force (Tension)10000 lb44.48 kN
Broadband Resolution (1 to 10000 Hz)0.60 lb-rms2.67 N-rms[2]
Low Frequency Response (-5 %)0.0003 Hz0.0003 Hz[3]
Upper Frequency Limit8000 Hz8000 Hz[4]
Non-Linearity≤1.5 % FS≤1.5 % FS[1]
Temperature Range-65 to +250 °F-54 to +121 °C
Temperature Coefficient of Sensitivity≤0.03 %/°F≤0.054 %/°C
Discharge Time Constant (at room temp)≥2000 sec≥2000 sec
Excitation Voltage20 to 30 VDC20 to 30 VDC
Constant Current Excitation2 to 20 mA2 to 20 mA
Output Impedance≤100 Ohm≤100 Ohm
Output Bias Voltage8 to 14 VDC8 to 14 VDC
Spectral Noise (1 Hz)0.041 lb/√Hz0.18 N/√Hz[2]
Spectral Noise (10 Hz)0.014 lb/√Hz0.062 N√Hz[2]
Spectral Noise (100 Hz)0.0039 lb/√Hz0.017 N/√Hz[2]
Spectral Noise (1000 Hz)0.00097 lb/√Hz0.0043 N/√Hz[2]
Stiffness6 lb/µin1.05 kN/µm[2]
Size - Diameter1.34 in34.04 mm
Size - Height2.50 in63.5 mm
Weight8.7 oz246 gm
Housing MaterialStainless SteelStainless Steel
Electrical Connector10-32 Coaxial Jack10-32 Coaxial Jack
Electrical Connection PositionSideSide
Mounting Thread5/8 - 18 Female5/8 - 18 Female

All specifications are at room temperature unless otherwise specified.

Product Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Calculated from discharge time constant.
[4] Estimated using rigid body dynamics calculations.
No Accessories
Optional Versions:
(M) Metric Mount
(N) Negative Output Polarity
(W) Water Resistant Cable
    Electrical ConnectorSealed Cable
    Electrical Connection PositionSide
Product Documents
Additional Downloads None Listed
