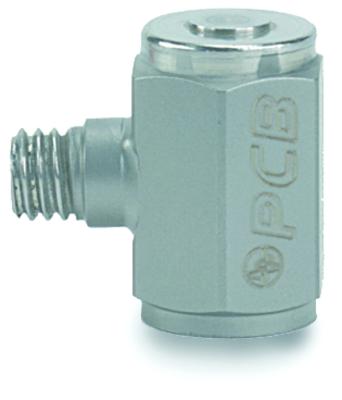

Miniature ICP® force sensor, 10 sec DTC, 2.2 lb comp., 2200 mV/lb

  • Measurement Range: 2.2 lb (0.00979 kN)
  • Sensitivity: (±15%)2200 mV/lb (494604 mV/kN)
  • Low Frequency Response: (-5%)0.05 Hz
  • Upper Frequency Limit: 100000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Mounting Thread: 10-32 Female (No Metric Equivalent)

Specification Notes


[1] Typical.
[2] Calculated from discharge time constant.
[3] Estimated using rigid body dynamics calculations.
[1] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±15 %) 2200 mV/lb 494604 mV/kN
Measurement Range (Compression) 2.2 lb 0.00979 kN
Maximum Static Force (Compression) 11 lb 0.0489 kN
Broadband Resolution (1) 0.00002 lb-rms 0.00009 N-rms [1]
Low Frequency Response (-5 %) 0.05 Hz 0.05 Hz [2]
Upper Frequency Limit 100000 Hz 100000 Hz [3]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.05 %/°F ≤0.09 %/°C
Electrical
Discharge Time Constant (at room temp) ≥10 sec ≥10 sec
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Spectral Noise (1 Hz) 0.0000123 lb/√Hz 0.0000548 N/√Hz [1]
Spectral Noise (10 Hz) 0.00000094 lb/√Hz 0.0000042 N√Hz [1]
Spectral Noise (100 Hz) 0.000000389 lb/√Hz 0.00000174 N/√Hz [1]
Spectral Noise (1000 Hz) 0.000000065 lb/√Hz 0.000000292 N/√Hz [1]
Output Polarity (Compression) Positive Positive
Physical
Stiffness 2 lb/µin 0.35 kN/µm [1]
Size - Hex 0.375 in 9.53 mm
Size - Height 0.610 in 15.49 mm
Weight 0.28 oz 8 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 10-32 Female No Metric Equivalent

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
081A05 Mounting stud, 10-32 to 10-32 x 0.27" long, BeCu (H900), no shoulder 1
084A38 Thermal boot (for Series 209) 1

Optional Versions


(M) Metric Mount
Accessories:
Supplied M081A05 Mounting Stud 10-32 to M6 x 0.75 x 0.27" long BeCu (H900), no shoulder 1

(W) Water Resistant Cable

English SI
Electrical Connector Sealed Cable
Electrical Connection Position Side
