penetration icp® force sensor, 1k lb comp., 5 mv/lb, integral hemispherical cap

Force Sensor, ICP®

Model 208A23

  • CE
  • IP

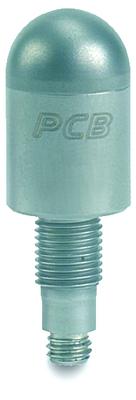

Penetration ICP® force sensor, 1k lb comp., 5 mV/lb, integral hemispherical cap

    Specification Notes


    [1] Zero-based, least-squares, straight line method.
    [2] Typical.
    [3] Calculated from discharge time constant.
    [2] Typical.
    [4] See PCB Declaration of Conformance PS023 for details.

    English: SI:
    Performance
    Sensitivity (±15 %) 5 mV/lb 1124 mV/kN
    Measurement Range (Compression) 1000 lb 4.448 kN
    Maximum Static Force (Compression) 2500 lb 11.12 kN
    Broadband Resolution (1) 0.02 lb-rms 0.08896 N-rms [2]
    Low Frequency Response (-5 %) 0.0003 Hz 0.0003 Hz [3]
    Upper Frequency Limit 18000 Hz 18000 Hz
    Non-Linearity ≤1 % FS ≤1 % FS [1]
    Environmental
    Temperature Range -65 to +250 °F -54 to +121 °C
    Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
    Electrical
    Discharge Time Constant (at room temp) ≥2000 sec ≥2000 sec
    Excitation Voltage 20 to 30 VDC 20 to 30 VDC
    Constant Current Excitation 2 to 20 mA 2 to 20 mA
    Output Impedance ≤100 Ohm ≤100 Ohm
    Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
    Output Polarity (Compression) Positive Positive
    Physical
    Stiffness 5 lb/µin 0.88 kN/µm [2]
    Size - Diameter 0.500 in 12.7 mm
    Size - Length 1.410 in 35.8 mm
    Weight 0.53 oz 15 gm
    Housing Material Stainless Steel Stainless Steel
    Impact Tip Material Titanium Titanium
    Sealing O-Ring O-Ring
    Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
    Electrical Connection Position Axial Axial
    Mounting Thread No English Equivalent M7 x 0.75 Male

    * All specifications are at room temperature unless otherwise specified.
