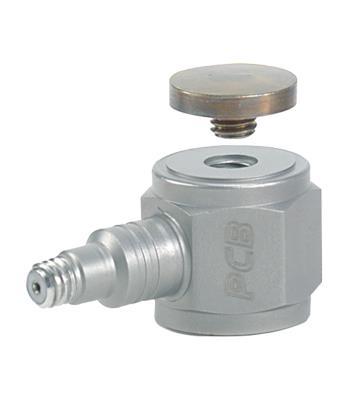

208C04 - Platinum Stock Products; Multi-purpose, ICP® force sensor, 1k lb comp., 500 lb tension, 5 mV/lb
Click to zoom

Model: 208C04

$430.00 USD
(Pricing valid in US only)

12 units In stock!

Click for lead times

Platinum Stock Products; Multi-purpose, ICP® force sensor, 1k lb comp., 500 lb tension, 5 mV/lb

  • Measurement Range: 1000 lb (4.448 kN)
  • Sensitivity: (±15%) 5 mV/lb (1124 mV/kN)
  • Low Frequency Response: (-5%) 0.0003 Hz
  • Upper Frequency Limit: 36000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Mounting Thread: 10-32 Female

Add this product to my product comparison
Compare selected models ()

Sensitivity (±15 %)5 mV/lb1124 mV/kN
Measurement Range (Compression)1000 lb4.448 kN
Measurement Range (Tension)500 lb2.224 kN
Maximum Static Force (Compression)6000 lb26.69 kN
Maximum Static Force (Tension)500 lb2.224 kN
Broadband Resolution (1 to 10000 Hz)0.01 lb-rms0.04448 N-rms[2]
Low Frequency Response (-5 %)0.0003 Hz0.0003 Hz[3]
Upper Frequency Limit36000 Hz36000 Hz[4]
Non-Linearity≤1 % FS≤1 % FS[1]
Temperature Range-65 to +250 °F-54 to +121 °C
Temperature Coefficient of Sensitivity≤0.05 %/°F≤0.09 %/°C
Discharge Time Constant (at room temp)≥2000 sec≥2000 sec
Excitation Voltage20 to 30 VDC20 to 30 VDC
Constant Current Excitation2 to 20 mA2 to 20 mA
Output Impedance≤100 Ohm≤100 Ohm
Output Bias Voltage8 to 14 VDC8 to 14 VDC
Spectral Noise (1 Hz)0.000798 lb/√Hz0.00356 N/√Hz[2]
Spectral Noise (10 Hz)0.000286 lb/√Hz0.00128 N√Hz[2]
Spectral Noise (100 Hz)0.0000860 lb/√Hz0.000384 N/√Hz[2]
Spectral Noise (1000 Hz)0.0000276 lb/√Hz0.000123 N/√Hz[2]
Stiffness6 lb/µin1.05 kN/µm[2]
Size - Hex0.625 in15.88 mm
Size - Height0.625 in15.88 mm
Size - Sensing Surface.500 in12.7 mm
Weight0.80 oz22.7 gm
Housing MaterialStainless SteelStainless Steel
Electrical Connector10-32 Coaxial Jack10-32 Coaxial Jack
Electrical Connection PositionSideSide
Mounting Thread10-32 Female10-32 Female

All specifications are at room temperature unless otherwise specified.


Product Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Calculated from discharge time constant.
[4] Estimated using rigid body dynamics calculations.
[5] See PCB Declaration of Conformance PS023 for details.
080A81Thread Locker(1)
084A03Impact Cap(1)
081B05Mounting Stud (10-32 to 10-32)(2)
M081A62Mounting stud, 10-32 to M6 x 1, BeCu with shoulder(2)
Optional Versions:
(N) Negative Output Polarity
(W) Water Resistant Cable
    Electrical Connection PositionSide
    Electrical ConnectorSealed Cable
