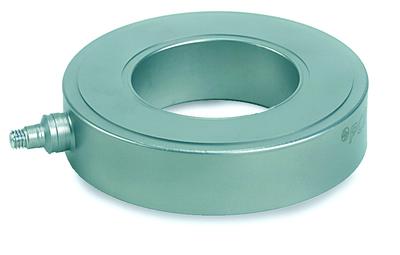

Model : 207C | Force Sensor, ICP®

Call for lead time
$ 2,522.00 USD
(Pricing valid in US only!)

ICP® quartz force ring, 100k lb comp., 0.05 mV/lb

  • Measurement Range: 100000 lb (444.8 kN)
  • Sensitivity: (±15%)0.05 mV/lb (11.2 mV/kN)
  • Low Frequency Response: (-5%)0.0003 Hz
  • Upper Frequency Limit: 35000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)

RELATED PRODUCTS



410C01

ICP® sensor signal cond., 35mm DIN-rail mount, peak track hold and waveform analog output, AC/DC coupling, gain, setup configurable via USB or Ethernet communications.



Add to Cart for Quote
Add To Cart
002C10

General purpose coaxial cable, white FEP jacket, 10-ft, 10-32 plug to BNC plug



Add to Cart for Quote
Add To Cart
English: SI:
Performance
Sensitivity (±15 %) 0.05 mV/lb 11.2 mV/kN
Measurement Range (Compression) 100000 lb 444.8 kN
Maximum Static Force (Compression) 110000 lb 489.3 kN
Broadband Resolution (1) 2.0 lb-rms 8.9 N-rms [2]
Low Frequency Response (-5 %) 0.0003 Hz 0.0003 Hz [3]
Upper Frequency Limit 35000 Hz 35000 Hz [4]
Non-Linearity ≤1 % FS ≤1 % FS [1]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.12 %/°F ≤0.216 %/°C
Electrical
Discharge Time Constant (at room temp) ≥2000 sec ≥2000 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Spectral Noise (1 Hz) (1) 0.0524 lb/√Hz 0.23 N/√Hz [2]
Spectral Noise (10 Hz) (10) 0.0230 lb/√Hz 0.10 N√Hz [2]
Spectral Noise (100 Hz) (100) 0.00854 lb/√Hz 0.0381 N/√Hz [2]
Spectral Noise (1000 Hz) (1) 0.00214 lb/√Hz 0.00955 N/√Hz [2]
Output Polarity (Compression) Positive Positive
Physical
Preload 33750 lb 150.13 kN
Stiffness 131 lb/µin 23 kN/µm [2]
Size - Diameter 2.950 in 74.9 mm
Size - Height 0.670 in 17.02 mm
Size - Bolt Diameter 1.5 in 36 mm
Size - ID (Hole Diameter) 1.610 in 40 mm
Size - OD (Sensor) 2.950 in 74.9 mm
Size - Sensing Surface 2.660 in 67.6 mm
Weight 11.57 oz 328 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Calculated from discharge time constant.
[4] Estimated using rigid body dynamics calculations.
[2] Typical.
[5] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
080A82 Assembly lubricant (for Series 201-207 force rings) 1
081A17 Mounting stud, 1 1/8-12 x 2.280", BeCu (for Models 207C & 217B) 1
082B07 Anti-friction washer (for Models 207C & 217B) 1
083B07 Pilot bushing (for Models 207C & 217B) 1


Optional Versions


( M ) Metric Mount
Accessories:
Supplied M081A17 Mounting Stud, M30 x 2.00 x 2.280, BeCu 1
Supplied M083B07 Pilot Bushing 1


( N ) Negative Output Polarity


( W ) Water Resistant Cable
English SI
Electrical Connector Sealed Cable
Electrical Connection Position Side
