modal shaker, 58 n (13 lbf) pk sine force, 18 mm (0.7) pk-pk stroke, with adjustable collet stinger attachment and through-hole armature design, includes 2000x03 accessory kit and trunnion mounting base.

Modal Exciter

Model 2025E

Add to Quote
  • IP

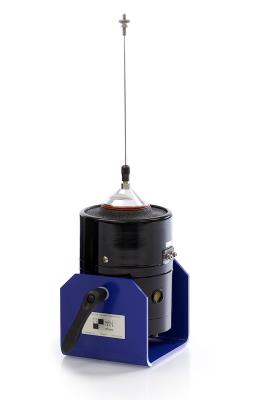

Modal Shaker, 58 N (13 lbf) pk sine force, 18 mm (0.7") pk-pk stroke, with adjustable collet stinger attachment and through-hole armature design, includes 2000X03 accessory kit and trunnion mounting base.

  • Output Force, sine pk: 13 lb (58 N)
  • Stroke Length: 0.7 in (18 mm)
  • Weight: 13 lb (6 kg)

Specification Notes

[1] Load Dependent
[2] Mechanical stops at 0.75 in (19 mm)
[3] Frequency range based upon ISO 5344 recommended useful range of 1.5 times first resonance frequency.
[4] Fuse protected at 12 AMPS.
[5] Room temperature, 68°F (20°C)
[6] Reference outline drawing for exact dimensions.

English: SI:
Performance
Frequency Range (Nominal) DC-9000 Hz DC-9000 Hz [1] [3]
Maximum Velocity 120 in/s pk 3 m/s pk
Acceleration (Maximum, Bare Table) 72 g pk 700 m/s² pk
Stroke Length (pk - pk) 0.7 in 18 mm [2]
Output Force, sine pk (ambient air cooling) 13 lb 58 N
Resonant Frequency (Nominal) >6000 Hz >6000 Hz [1]
Maximum Current (Ambient air cooling) 12.5 A rms 12.5 A rms [4]
Environmental
Relative Humidity <85 % <85 %
Electrical
Resistance (Armature, Nominal) 0.5 Ω 0.5 Ω [5]
Physical
Armature Weight 0.35 lb 0.159 kg
Size - Height (Nominal) 8.65 in 220 mm [6]
Size - Width (Nominal) 8.82 in 224 mm [6]
Size - Depth (Nominal) 4.25 in 108 mm [6]
Weight (Nominal) 13 lb 6 kg
Operating Range 40 to 100 °F 4 to 38 °C
Material (Armature Suspension) 8 pcs carbon fiber composite flexures 8 pcs carbon fiber composite flexures

* All specifications are at room temperature unless otherwise specified.

Accessories
Optional
288D01 ICP® impedance head, force/accel: Force: 100 mV/lb, range +/- 50 lbs; Accel: 100 mV/g, 50 g range 1
