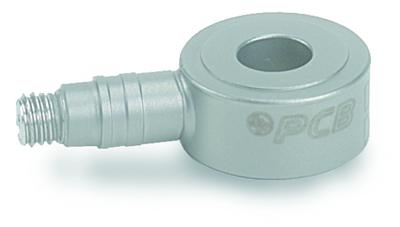

Model : 201B02 | Force Sensor, ICP®

Click for lead times
Lead Time for 1-3 is 5 Wks
icp® quartz force ring, 100 lb comp., 50 mv/lb
$ 999.00 USD
(Pricing valid in US only!)

ICP® quartz force ring, 100 lb comp., 50 mV/lb

  • Measurement Range: 100 lb ( 0.4448 kN)
  • Sensitivity: (±15%)50 mV/lb ( 11240 mV/kN)
  • Low Frequency Response: (-5%)0.006 Hz
  • Upper Frequency Limit: 90000 Hz
  • Temperature Range: -65 to +250 °F ( -54 to +121 °C)

RELATED PRODUCTS



410C01
410C01

ICP® sensor signal cond., 35mm DIN-rail mount, peak track hold and waveform analog output, AC/DC coupling, gain, setup configurable via USB or Ethernet communications.



Add to Cart for Quote
Add to Cart
002C10
002C10

General purpose coaxial cable, white FEP jacket, 10-ft, 10-32 plug to BNC plug



Add to Cart for Quote
Add to Cart
081A11
081A11

Mounting stud, 10-32 x 0.730", BeCu for Models 201B01, 201B02, 201B03, 201B04, 201B05, 211B & 201B76



Add to Cart for Quote
Add to Cart
M081A11
M081A11

Mounting stud, M5x0.8 x 0.730", BeCu for Models 201B01, 201B02, 201B03, 201B04, 201B05 & 211B



Add to Cart for Quote
Add to Cart
082B01
082B01

Anti-friction washer for Models 201B01, 201B02, 201B03, 201B04, 201B05 & 211B



Add to Cart for Quote
Add to Cart
083B01
083B01

Pilot bushing for Models 201B01, 201B02, 201B03, 201B04, 201B05 & 211B



Add to Cart for Quote
Add to Cart
M083B01
M083B01

Pilot bushing for Models 201B01, 201B02, 201B03, 201B04, 201B05 & 211B



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±15 %) 50 mV/lb 11240 mV/kN
Measurement Range (Compression) 100 lb 0.4448 kN
Maximum Static Force (Compression) 600 lb 2.67 kN
Broadband Resolution (1) 0.002 lb-rms 0.00890 N-rms [ 2]
Low Frequency Response (-5 %) 0.006 Hz 0.006 Hz [ 3]
Upper Frequency Limit 90000 Hz 90000 Hz [ 4]
Non-Linearity ≤1 % FS ≤1 % FS [ 1]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Discharge Time Constant (at room temp) ≥120 sec ≥120 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Output Polarity (Compression) Positive Positive
Physical
Preload 100 lb 0.445 kN
Stiffness 12 lb/µin 2.1 kN/µm [ 2]
Size - Diameter 0.650 in 16.5 mm
Size - Height 0.310 in 7.9 mm
Size - Bolt Diameter 0.25 in 6 mm
Size - ID (Hole Diameter) 0.251 in 6.38 mm
Size - OD (Sensor) 0.650 in 16.51 mm
Size - Sensing Surface 0.50 in 12.7 mm
Weight 0.35 oz 10 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] Calculated from discharge time constant.
[ 4] Estimated using rigid body dynamics calculations.
[ 2] Typical.
[ 5] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
080A82 Assembly lubricant (for Series 201-207 force rings) 1
081A11 Mounting stud, 10-32 x 0.730", BeCu for Models 201B01, 201B02, 201B03, 201B04, 201B05, 211B & 201B76 1
082B01 Anti-friction washer for Models 201B01, 201B02, 201B03, 201B04, 201B05 & 211B 1
083B01 Pilot bushing for Models 201B01, 201B02, 201B03, 201B04, 201B05 & 211B 1
M081A11 Mounting stud, M5x0.8 x 0.730", BeCu for Models 201B01, 201B02, 201B03, 201B04, 201B05 & 211B 1
M083B01 Pilot bushing for Models 201B01, 201B02, 201B03, 201B04, 201B05 & 211B 1


Optional Versions


( N ) Negative Output Polarity


( W ) Water Resistant Cable
English SI
Electrical Connector Sealed Cable
Electrical Connection Position Side
